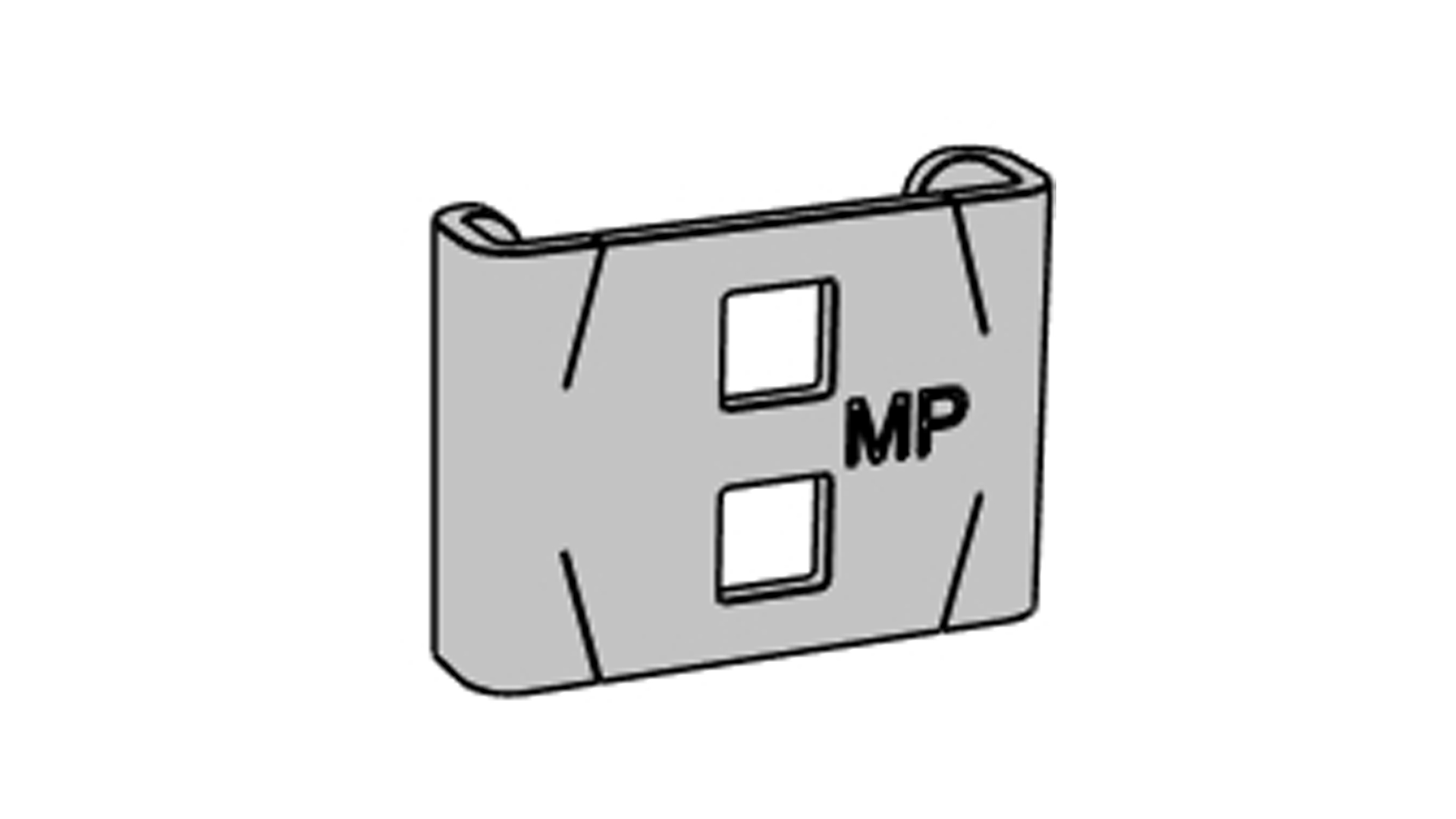

Corner joint for wire ladder

C2

E No:

|

MP-number: 732V

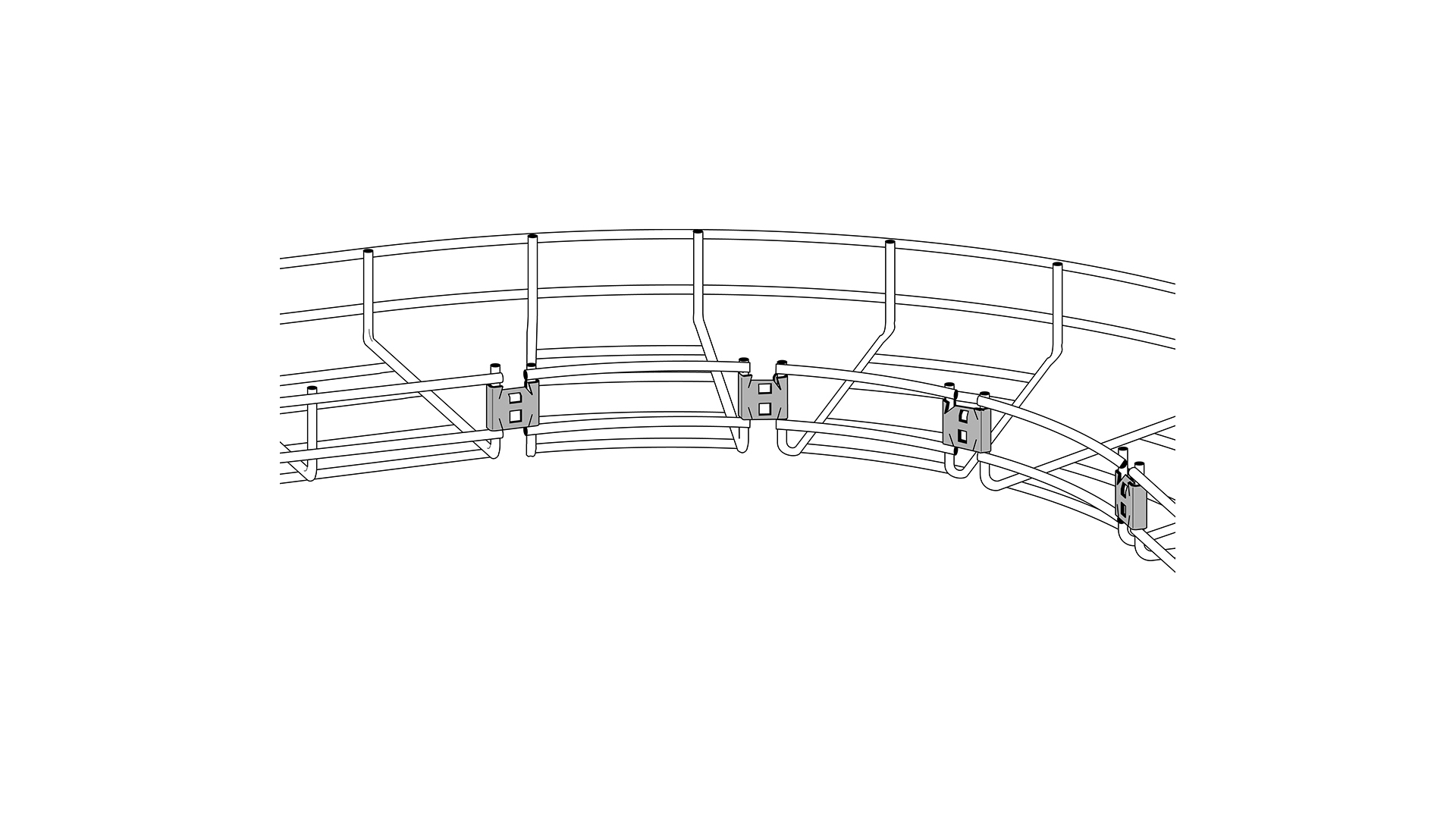

White-painted corner splice for wire mesh trays that makes making L, T and X branches easy. The splice is made of powder-coated sheet metal and is suitable for environmental class max C2. Depending on the type of branch to be created, first cut the longitudinal or transverse rungs. Then fit the corner splice over the transverse rungs. To lock, insert a screwdriver into the square holes and bend the tongue between the wires of the ladder.
All variants

Product details

  • MP-number 732V
  • EAN 7394333953274
  • Length 32 mm
  • Width 25 mm
  • Height 8 mm
  • Weight 0.02 kg
  • Climate impact 0.051 kgCO2e
  • Surface treatment Lacquered
  • Color NCS S 0500-N (white)
  • Corrosion class C2
  • Suitable for Wire ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Length

Width

Height

Color

Surface treatment

Corrosion class

Suitable for

732S

32 mm

25 mm

8 mm

Pre-galvanized 20 µm

C2

Wire ladders

Select

MP-number

E No

Length

Width

Height

Color

Surface treatment

Corrosion class

Suitable for

732V

32 mm

25 mm

8 mm

NCS S 0500-N (white)

Lacquered

C2

Wire ladders

Selected

MP-number

E No

Length

Width

Height

Color

Surface treatment

Corrosion class

Suitable for

732R

32 mm

25 mm

8 mm

Stainless steel 316L

C5-M

Wire ladders

Select
