Connection collar TBL, 105x67x12 mm

E No:

|

MP-number: TBL10-3

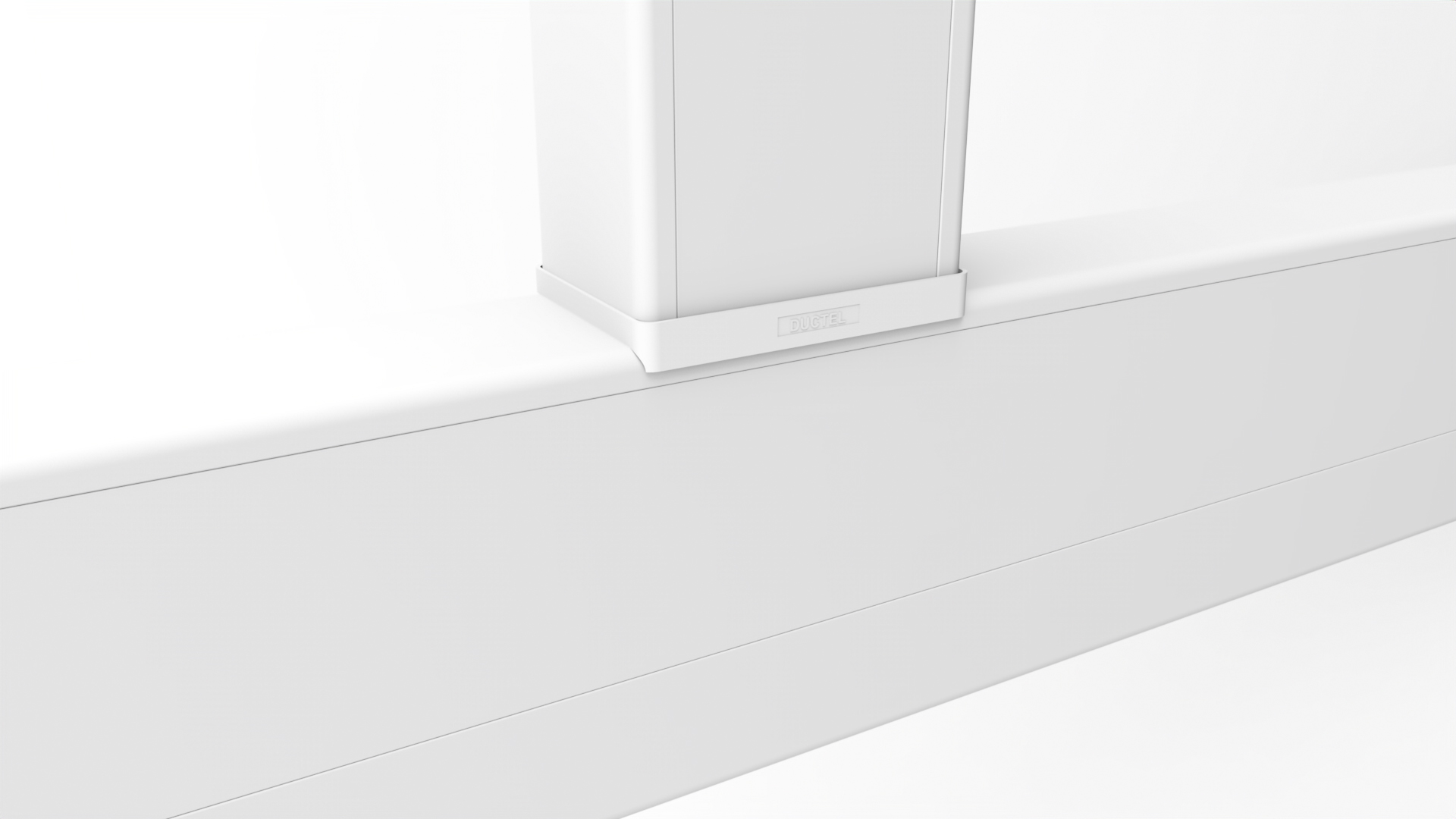

Jointing collar/white for connections between downward trunking and wall trunking. Fits TB 1010, 1040.

All variants All variants

Product details

MP-number TBL10-3
EAN 7394333402659
Length 67 mm
Width 12 mm
Height 105 mm
Weight 0.01 kg
Surface treatment Painted aluminum
Color RAL 9010 (white)
Suitable for Window sill channels

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

	MP-number	E No	Length	Width	Height	Color	Surface treatment	Suitable for
	TBL10-1		67 mm	12 mm	105 mm	Natural anodized	Plastic	Window sill channels	Select
	TBL13-1		67 mm	12 mm	140 mm	Natural anodized	Plastic	Window sill channels	Select
	TBL17-1		67 mm	12 mm	175 mm	Natural anodized	Plastic	Window sill channels	Select
	TBL22-1		67 mm	12 mm	225 mm	Natural anodized	Plastic	Window sill channels	Select
	TBL10-2		67 mm	12 mm	105 mm	RAL 9005 (black)	Painted aluminum	Window sill channels	Select
	TBL13-2		67 mm	12 mm	140 mm	RAL 9005 (black)	Painted aluminum	Window sill channels	Select
	TBL17-2		67 mm	12 mm	175 mm	RAL 9005 (black)	Painted aluminum	Window sill channels	Select
	TBL10-3		67 mm	12 mm	105 mm	RAL 9010 (white)	Painted aluminum	Window sill channels	Selected
	TBL13-3		67 mm	12 mm	140 mm	RAL 9010 (white)	Painted aluminum	Window sill channels	Select
	TBL17-3		67 mm	12 mm	175 mm	RAL 9010 (white)	Painted aluminum	Window sill channels	Select
	TBL22-3		67 mm	12 mm	225 mm	RAL 9010 (white)	Painted aluminum	Window sill channels	Select
