Complete floor box in aluminium, 1x 230V, 1x RJ45 Cat6 STP

E No:

MP-number: BODO N

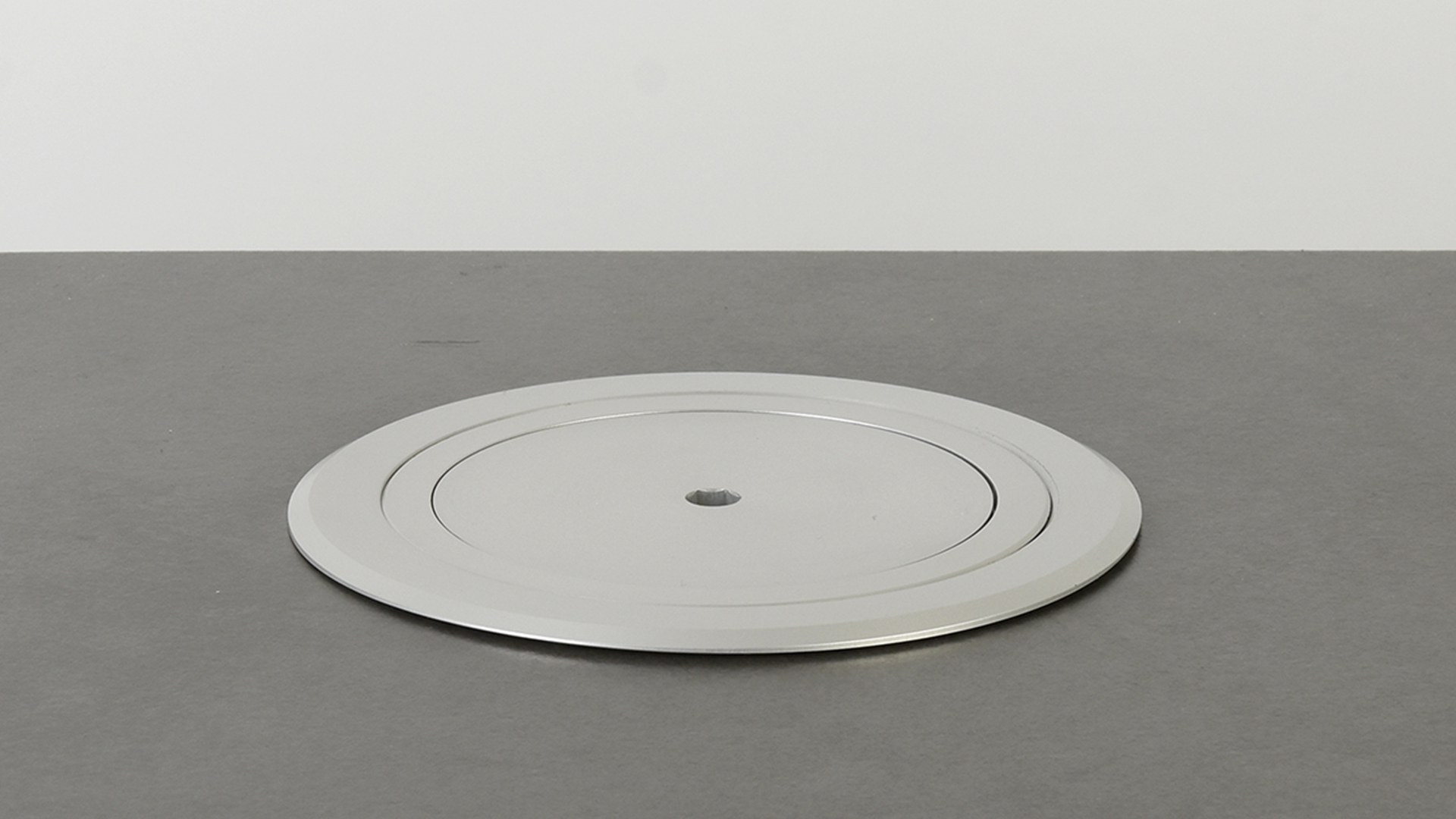

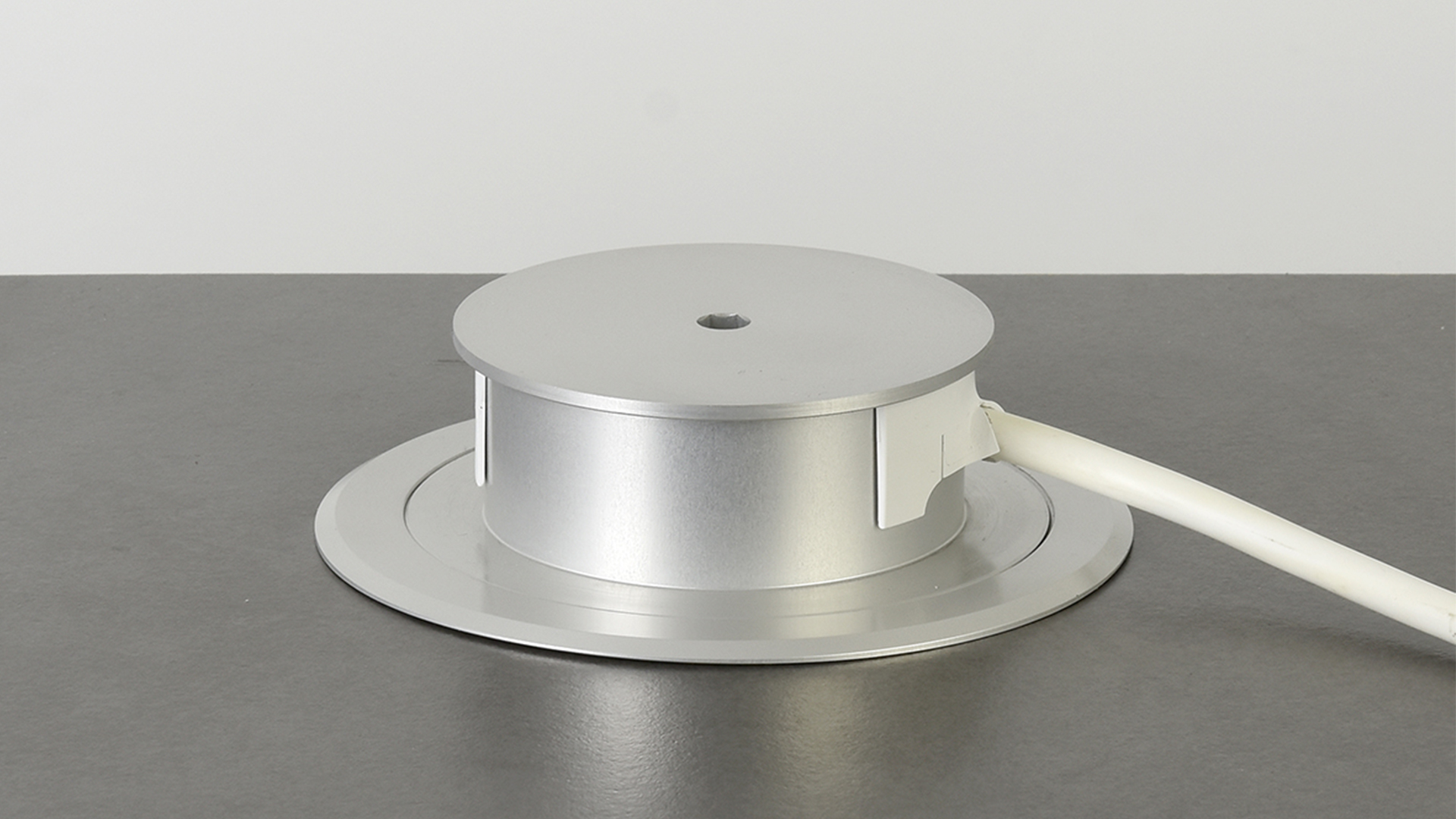

Complete floor box in aluminium for e.g. garages. IP66 in closed position and IP43 in used position. One power outlet 220 V and one socket Cat6 STP included. Hex key required to open (included). A tube outlet is supplied which is turned inwards in the box when it is not used. In the used position with fitted tube outlet, the cable is protected even if the junction box is driven over the cable remains undamaged. Max load 1500 kg, both in use and closed. According to: DIN EN 50085-2-2.

All variants All variants

Product details

MP-number BODO N
EAN 4040918191519

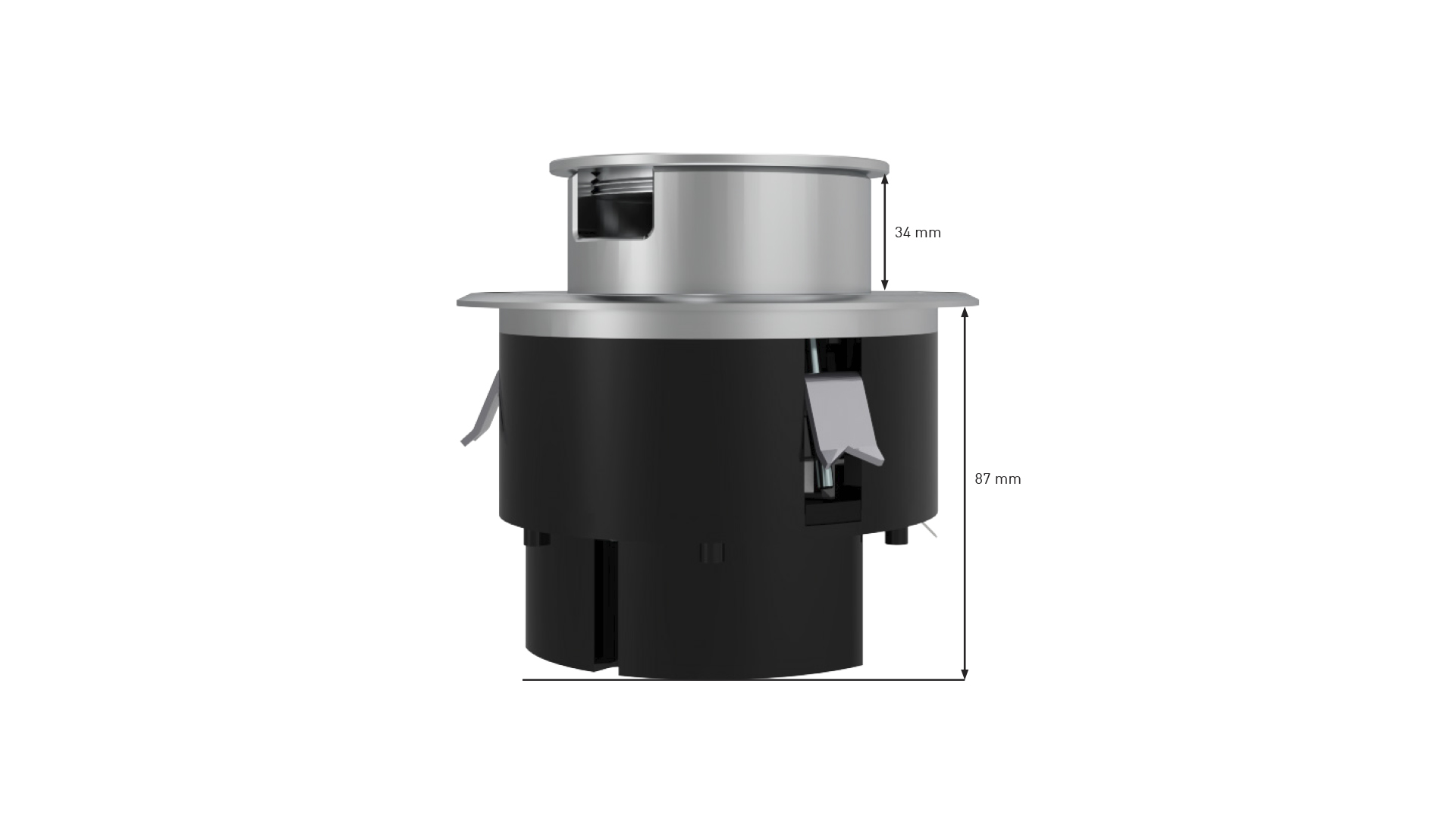

Length 140 mm
Width 140 mm
Height 87 mm
Weight 0.74 kg
Surface treatment Anodized
General power outlet (230V) 1 st
Telephone/data socket (RJ45 Cat6) 1 st
Shielding (data/telephone) STP
Mounting opening Ø 122 mm
Max load 1500 kg
Model Bodo
