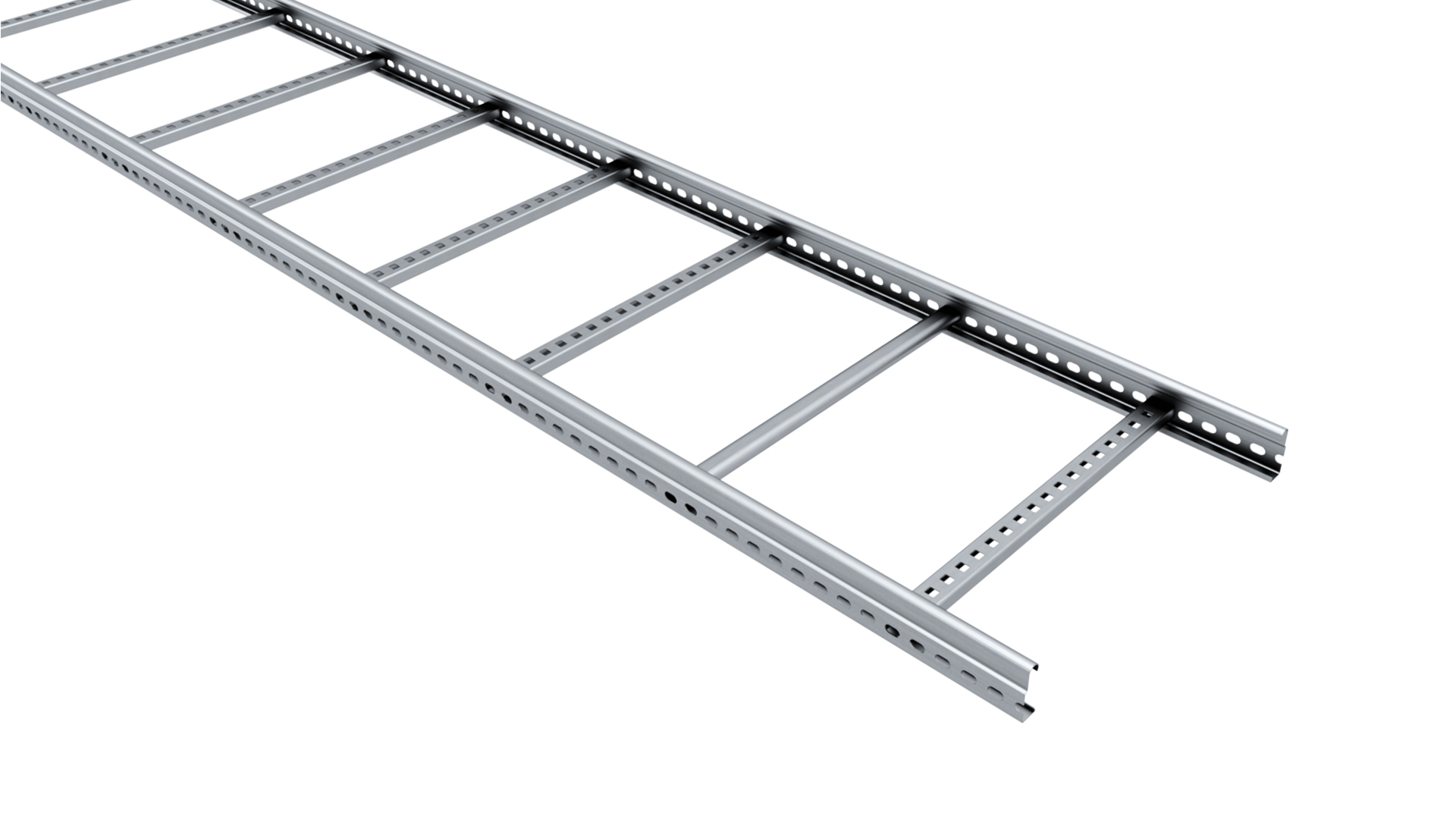

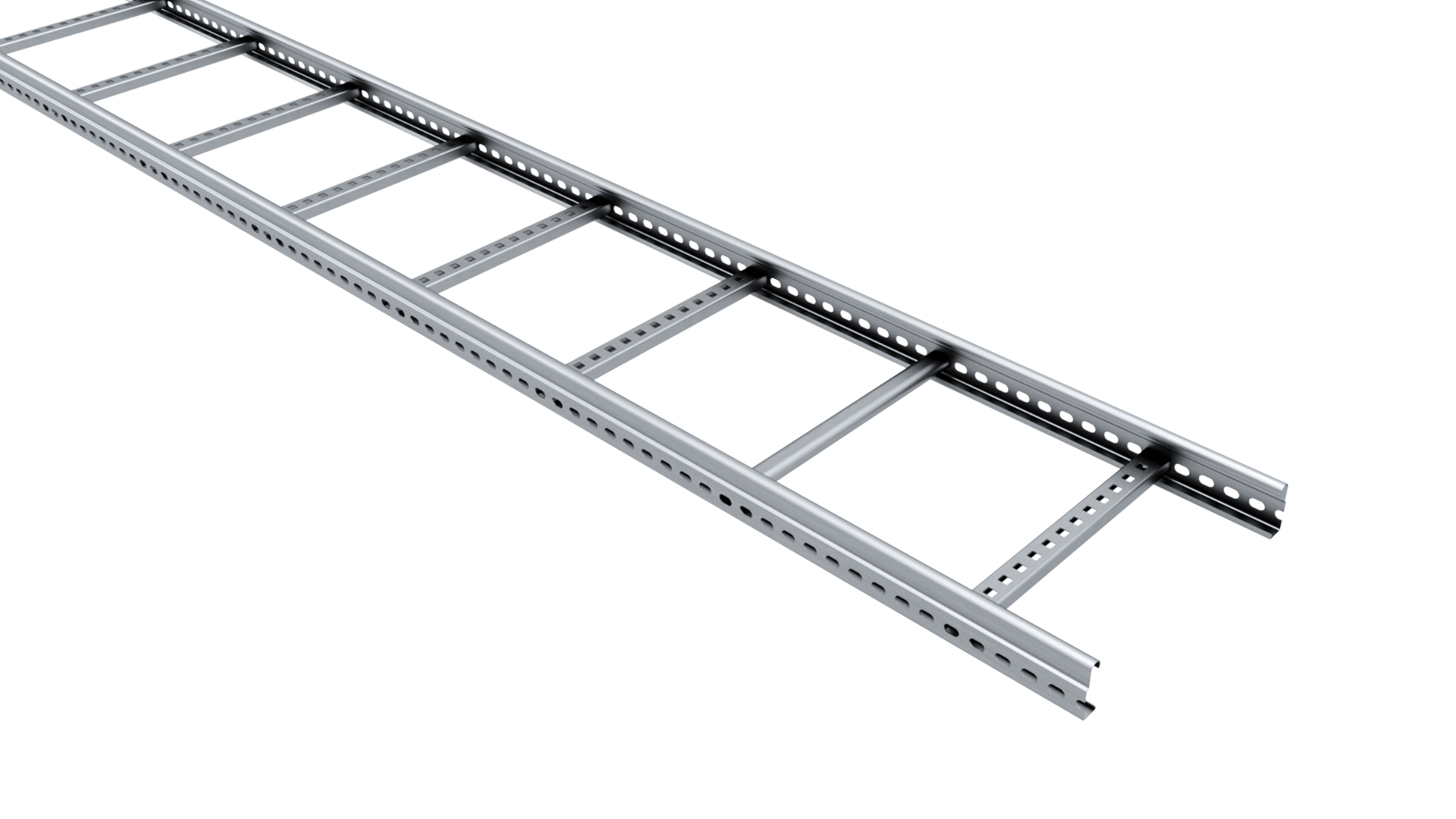

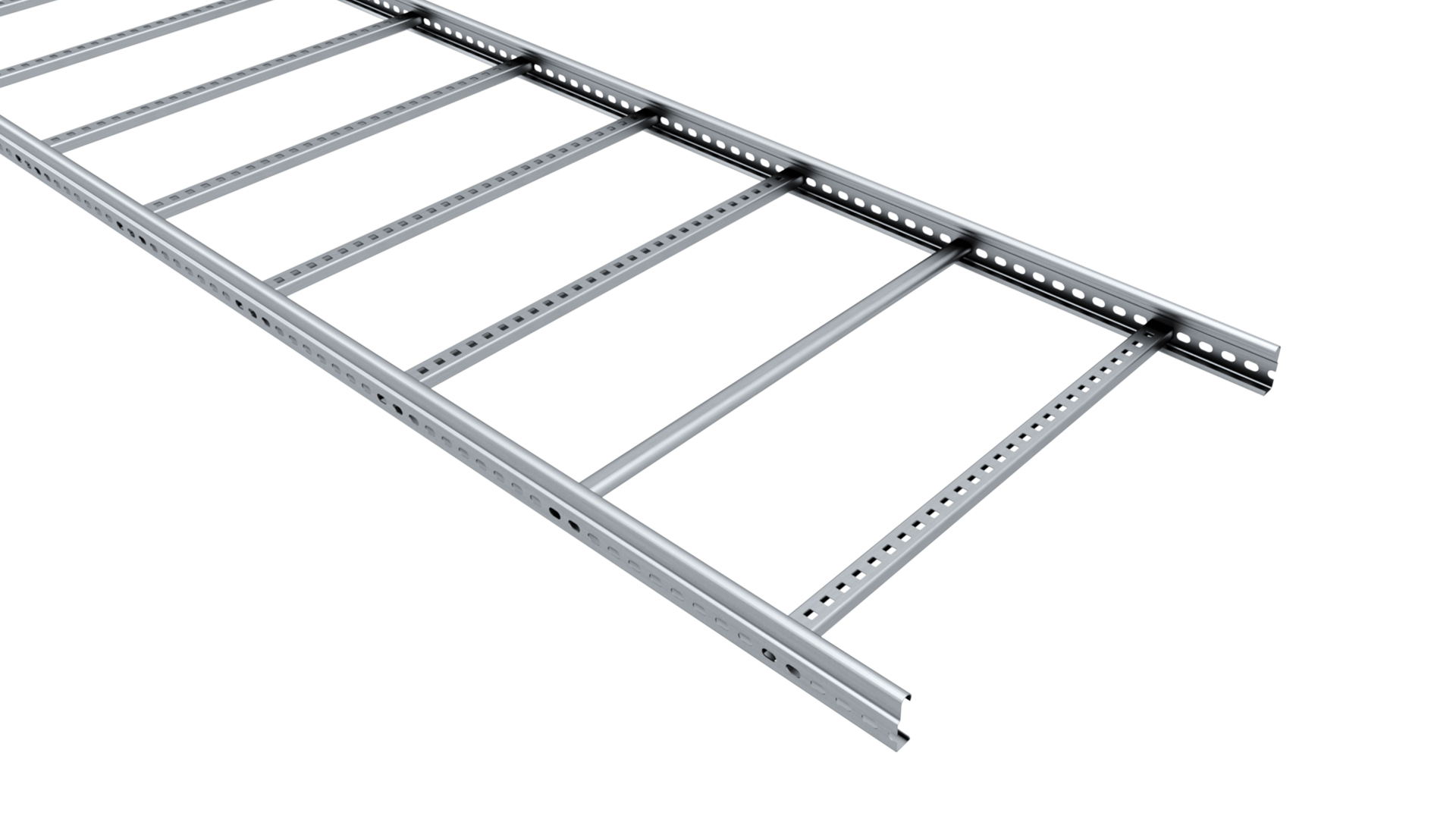

Cable ladder MP-PZ4, 6 m, 500 mm

E No:

MP-number: 155PZ4

Industrial ladder with higher load-bearing capacity. Made from a zinc-magnesium alloy (25 µm) and suitable for environmental class up to C4. The advantage of this material is its self-healing properties, for instance, when cut. This model features perforated-rung steps with a center-to-center distance of 250 mm (the second and fourth rung in each end is closed). The perforated side allows for the installation of branches, angle brackets, etc. Additionally, the profile shape enables cables up to 19 mm in diameter to utilize over 98% of the width of the steps. Breaking load: greater than or equal to 1.7 times the maximum load.

All variants All variants

Product details

MP-number 155PZ4
EAN 7394333047416
Length 6000 mm
Width 500 mm
Height 56 mm
Weight 16.1 kg
Material thickness ladder side 1.25 mm
Climate impact 43.148 kgCO2e
Surface treatment Z4
Corrosion class C4
Cable ladder properties Perforated rungs, Heavier loads
Model MP-PZ4

Documents

Environmental data galvanized Z4_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Length	Width	Corrosion class	Surface treatment
102Z4	3000 mm	200 mm	C4	Z4	Select
103Z4	3000 mm	300 mm	C4	Z4	Select
104Z4	3000 mm	400 mm	C4	Z4	Select
105Z4	3000 mm	500 mm	C4	Z4	Select
106Z4	3000 mm	600 mm	C4	Z4	Select
152PZ4	6000 mm	200 mm	C4	Z4	Select
153PZ4	6000 mm	300 mm	C4	Z4	Select
154PZ4	6000 mm	400 mm	C4	Z4	Select
155PZ4	6000 mm	500 mm	C4	Z4	Selected
156PZ4	6000 mm	600 mm	C4	Z4	Select
