Cable ladder MP-PZ, 3 m, 200 mm

C4

E No:

|

MP-number: 102Z

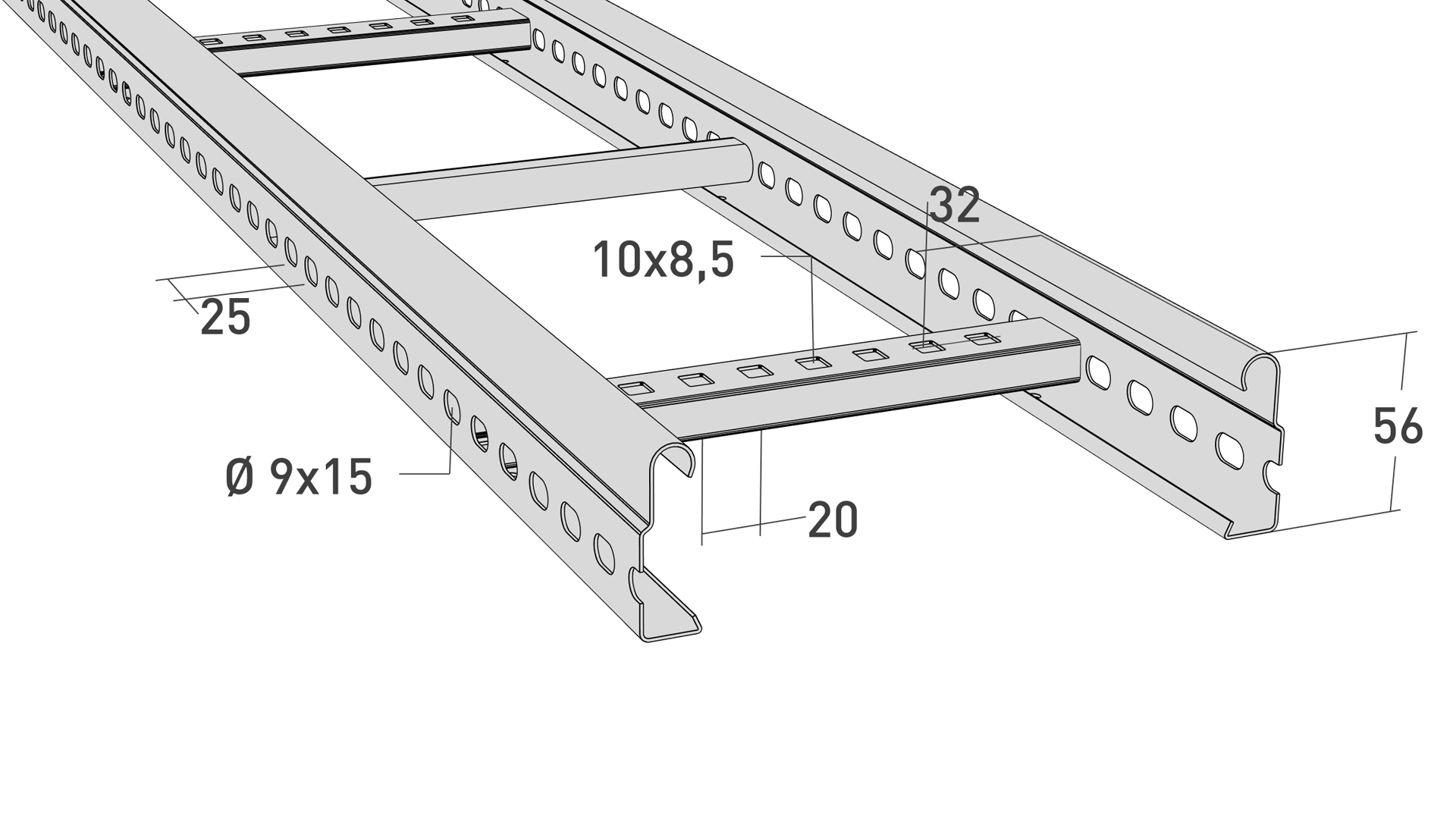

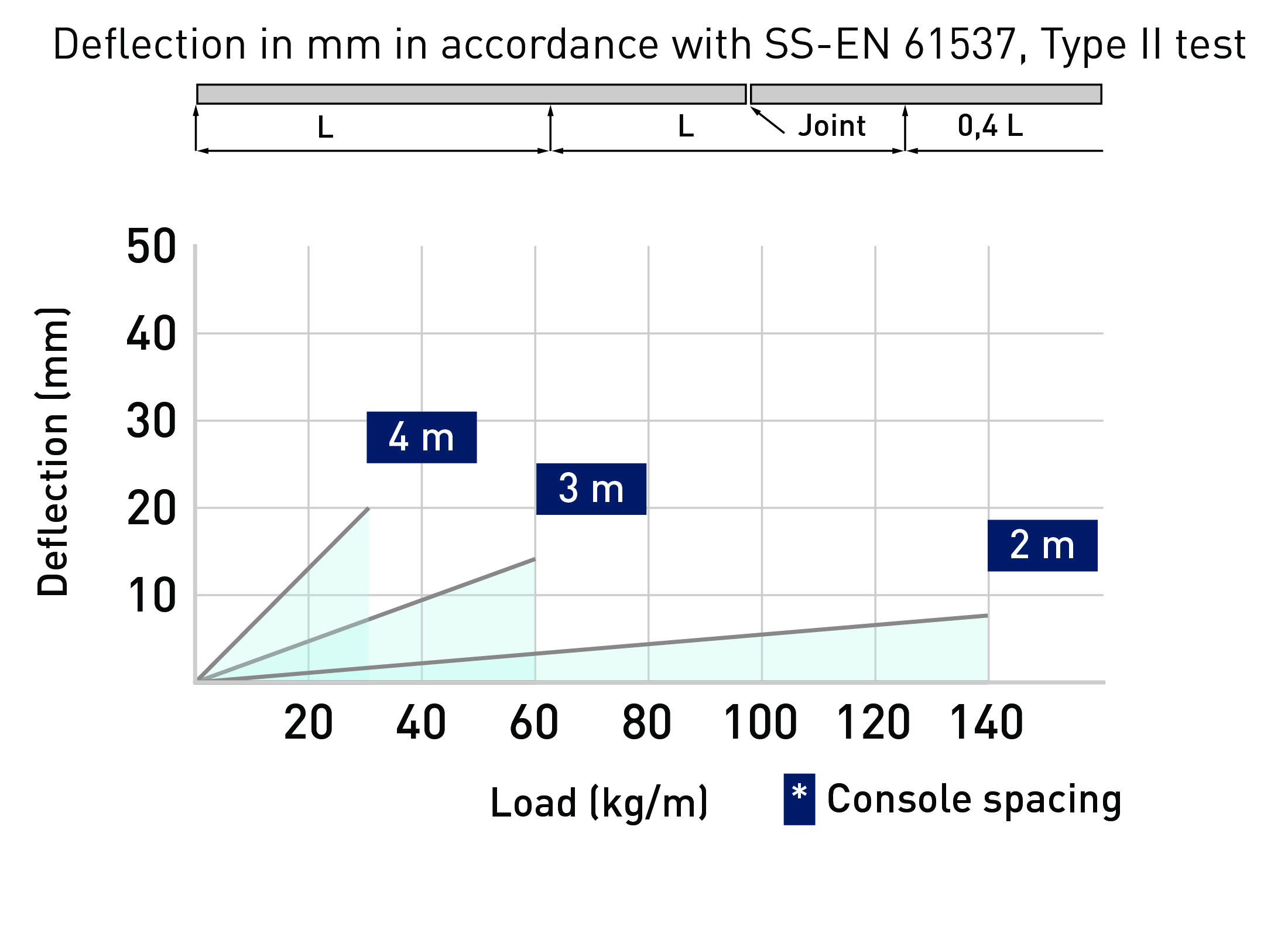

MP-PZ is a hot-dip galvanized (55 µm) 3 m cable ladder that can be used in environmental class max C4. Perforated rungs where the second rung at each end is closed. The perforated side allows the assembly of junctions, angle brackets, etc. The shape of the profile allows cables up to 19 mm in diameter to use over 98% of the width of the cable ladder. Rung distance: c-c 250 mm. Ultimate failure load: more than or equal to 1.7 times the maximum load.
All variants

Product details

  • MP-number 102Z
  • EAN 7394333751078
  • Length 3000 mm
  • Width 200 mm
  • Height 56 mm
  • Weight 7.15 kg
  • Material thickness ladder side 1.25 mm
  • Climate impact 20.234 kgCO2e
  • Surface treatment Hot-dip galvanized 55 µm
  • Corrosion class C4
  • Cable ladder properties Perforated rungs, Heavier loads
  • Model MP-PZ

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Length

Width

Corrosion class

Surface treatment

102Z

3000 mm

200 mm

C4

Hot-dip galvanized 55 µm

Selected

MP-number

E No

Length

Width

Corrosion class

Surface treatment

103Z

3000 mm

300 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

104Z

3000 mm

400 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

105Z

3000 mm

500 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

106Z

3000 mm

600 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

152PZ

6000 mm

200 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

153PZ

6000 mm

300 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

154PZ

6000 mm

400 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

155PZ

6000 mm

500 mm

C4

Hot-dip galvanized 55 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

156PZ

6000 mm

600 mm

C4

Hot-dip galvanized 55 µm

Select
