Cable clamp S, Single, 52–56 mm

E No:

MP-number: K56S

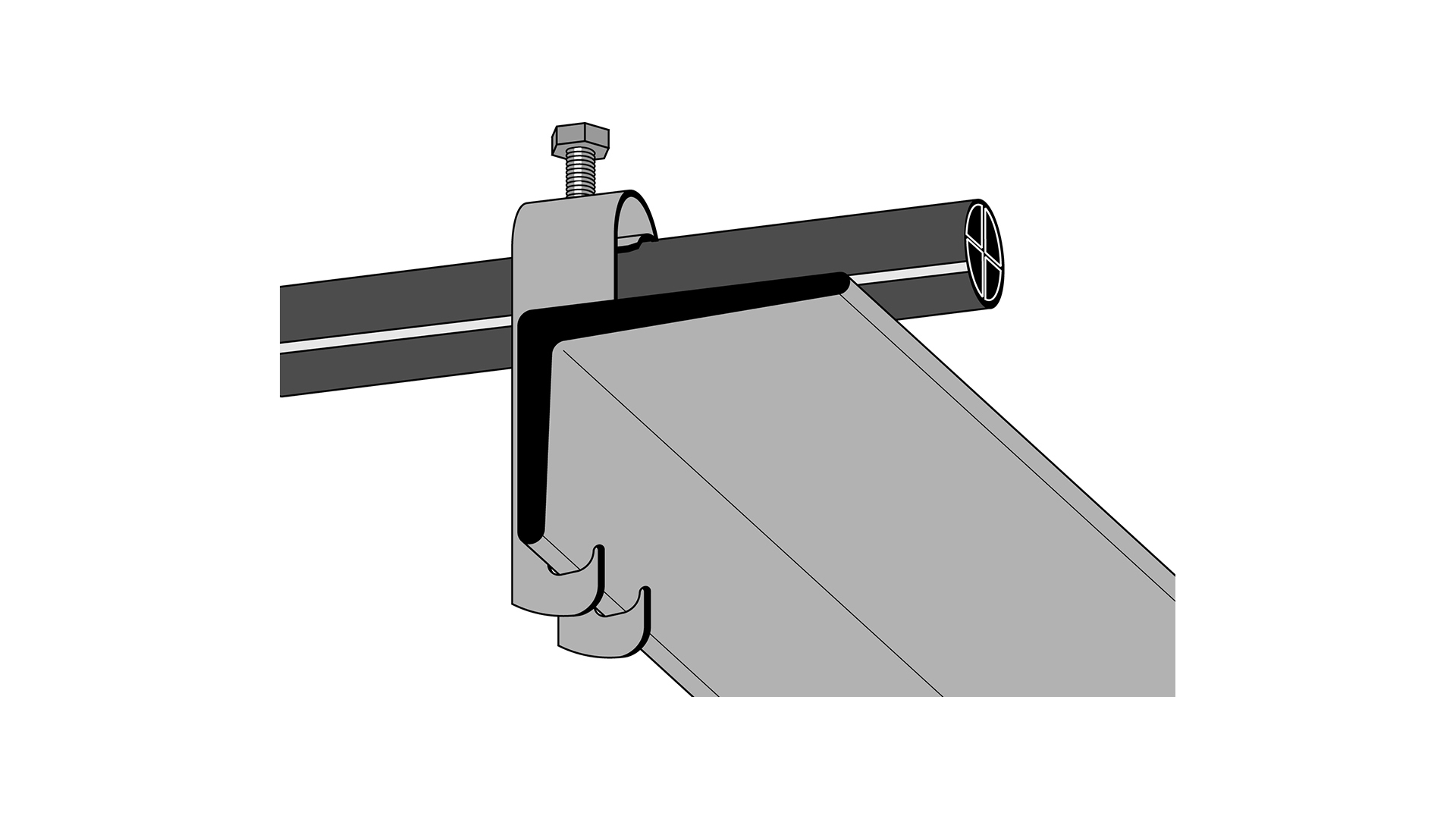

Cable clamp for angle brackets or U-bars mm with a flange height of 40 mm. Cable clamp type S-VA is manufactured of non-magnetic stainless steel grade 1.4301 (SS2333). Cable clamps in other sizes are available on request.

All variants All variants

Product details

MP-number K56S
EAN 7394333972732
Length 33 mm
Width 61 mm
Height 134 mm
Weight 0.04 kg
Surface treatment Hot-dip galvanized 55 µm
Corrosion class C4
Number of cables (cable holders) Simple
Cable diameter 52–56 mm mm
Model Kabelhållare S

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Number of cables (cable holders)	Cable diameter	Surface treatment	Corrosion class
K12S	Simple	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K12/2S-VA	Double	8–12 mm mm	Stainless steel 304	C5-I	Select
K12/3S-VA	Triple	8–12 mm mm	Stainless steel 304	C5-I	Select
K12S-VA	Simple	8–12 mm mm	Stainless steel 304	C5-I	Select
K16/2S-VA	Double	12–16 mm mm	Stainless steel 304	C5-I	Select
K16/3S-VA	Triple	12–16 mm mm	Stainless steel 304	C5-I	Select
K16S-VA	Simple	12–16 mm mm	Stainless steel 304	C5-I	Select
K20/2S-VA	Double	16–20 mm mm	Stainless steel 304	C5-I	Select
K20/3S-VA	Triple	16–20 mm mm	Stainless steel 304	C5-I	Select
K20S-VA	Simple	16–20 mm mm	Stainless steel 304	C5-I	Select
K24/2S-VA	Double	20–24 mm mm	Stainless steel 304	C5-I	Select
K24/3S-VA	Triple	20–24 mm mm	Stainless steel 304	C5-I	Select
K24S-VA	Simple	20–24 mm mm	Stainless steel 304	C5-I	Select
K28/2S-VA	Double	24–28 mm mm	Stainless steel 304	C5-I	Select
K28/3S-VA	Triple	24–28 mm mm	Stainless steel 304	C5-I	Select
K28S-VA	Simple	24–28 mm mm	Stainless steel 304	C5-I	Select
K32/2S-VA	Double	28–32 mm mm	Stainless steel 304	C5-I	Select
K32S-VA	Simple	28–32 mm mm	Stainless steel 304	C5-I	Select
K36/2S-VA	Double	32–36 mm mm	Stainless steel 304	C5-I	Select
K36S-VA	Simple	32–36 mm mm	Stainless steel 304	C5-I	Select
K40/2S-VA	Double	36–40 mm mm	Stainless steel 304	C5-I	Select
K40S-VA	Simple	36–40 mm mm	Stainless steel 304	C5-I	Select
K44S-VA	Simple	40–44 mm mm	Stainless steel 304	C5-I	Select
K48S-VA	Simple	44–48 mm mm	Stainless steel 304	C5-I	Select
K52S-VA	Simple	48–52 mm mm	Stainless steel 304	C5-I	Select
K56S-VA	Simple	52–56 mm mm	Stainless steel 304	C5-I	Select
K60S-VA	Simple	56–60 mm mm	Stainless steel 304	C5-I	Select
K70S-VA	Simple	60–70 mm mm	Stainless steel 304	C5-I	Select
K12/2S	Double	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K12/3S	Triple	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16/2S	Double	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16/3S	Triple	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16S	Simple	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20/2S	Double	16–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20/3S	Triple	16–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20S	Simple	16–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K24/2S	Double	20–24 mm mm	Hot-dip galvanized 55 µm	C4	Select
K24/3S	Triple	20–24 mm mm	Hot-dip galvanized 55 µm	C4	Select
K24S	Simple	20–24 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28/2S	Double	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28/3S	Triple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28S	Simple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K32/2S	Double	28–32 mm mm	Hot-dip galvanized 55 µm	C4	Select
K32S	Simple	28–32 mm mm	Hot-dip galvanized 55 µm	C4	Select
K36/2S	Double	32–36 mm mm	Hot-dip galvanized 55 µm	C4	Select
K36S	Simple	32–36 mm mm	Hot-dip galvanized 55 µm	C4	Select
K40/2S	Double	36–40 mm mm	Hot-dip galvanized 55 µm	C4	Select
K40S	Simple	36–40 mm mm	Hot-dip galvanized 55 µm	C4	Select
K44/2S	Double	40–44 mm mm	Hot-dip galvanized 55 µm	C4	Select
K44S	Simple	40–44 mm mm	Hot-dip galvanized 55 µm	C4	Select
K48/2S	Double	44–48 mm mm	Hot-dip galvanized 55 µm	C4	Select
K48S	Simple	44–48 mm mm	Hot-dip galvanized 55 µm	C4	Select
K52/2S	Double	48–52 mm mm	Hot-dip galvanized 55 µm	C4	Select
K52S	Simple	48–52 mm mm	Hot-dip galvanized 55 µm	C4	Select
K56S	Simple	52–56 mm mm	Hot-dip galvanized 55 µm	C4	Selected
K60S	Simple	56–60 mm mm	Hot-dip galvanized 55 µm	C4	Select
K70S	Simple	60–70 mm mm	Hot-dip galvanized 55 µm	C4	Select
