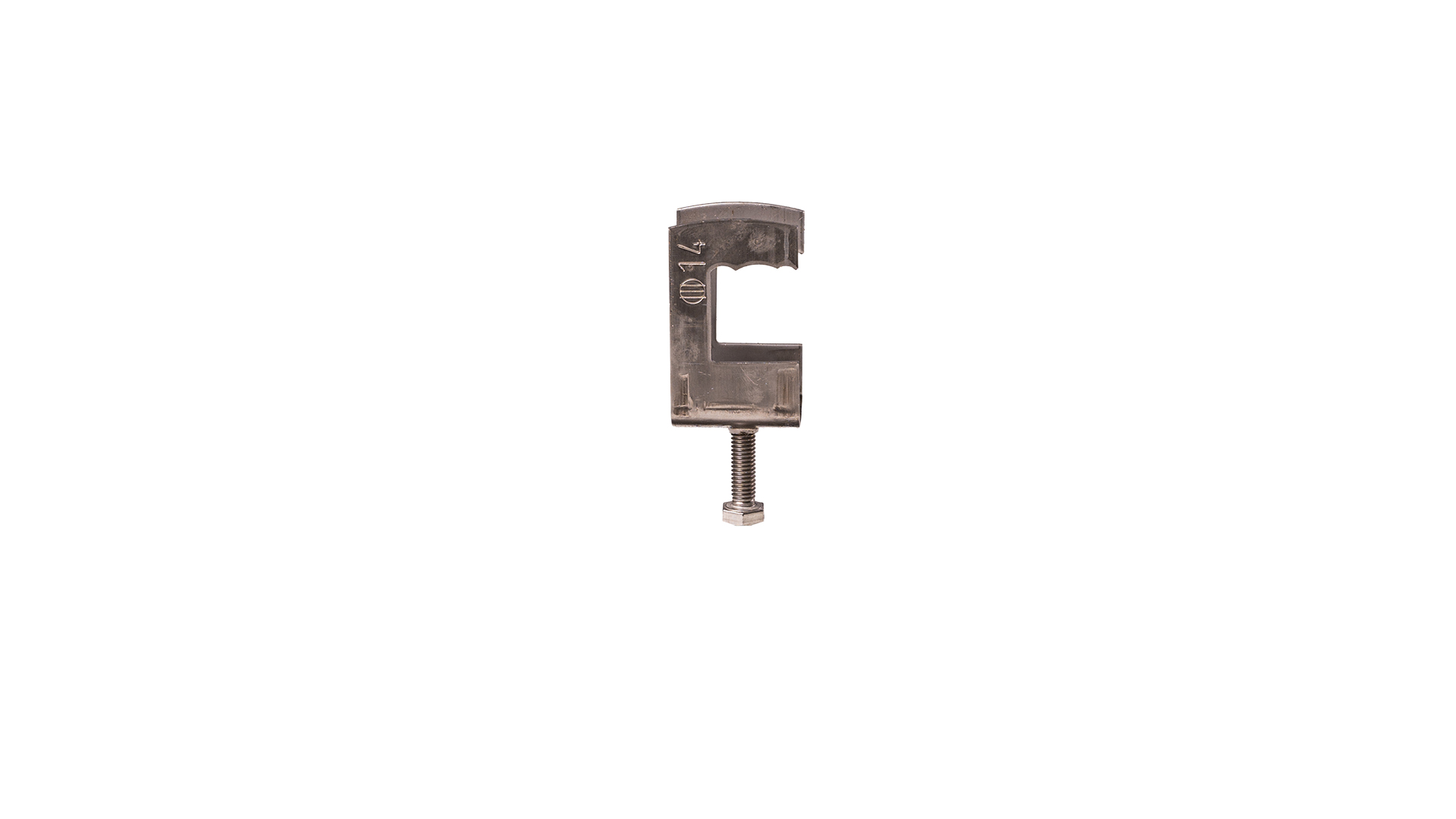

Cable clamp RU, Single, 8–14 mm

C5-I

E No:

MP-number: K14RU-VA+GW

Cable clamp RU is designed to fit most cable trays available on the market. The cable clamp is also suitable for mounting on flat surfaces such as flat steel bars, etc. RU is always supplied complete with spacer type GW, to give the cable an even and large contact surface against the support. Cable clamp type RU-VA is manufactured of non-magnetic stainless steel grade 1.4301 SS2333. Other sizes are available on request.

All variants All variants

Product details

MP-number K14RU-VA+GW
EAN 7394333962580
Length 28 mm
Width 20 mm
Height 82 mm
Weight 0.05 kg
Surface treatment Stainless steel 304
Corrosion class C5-I
Number of cables (cable holders) Simple
Cable diameter 8–14 mm mm
Model Kabelhållare RU

Documents

Environmental data RU & GW_en-GB.pdf

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Number of cables (cable holders)	Cable diameter	Surface treatment	Corrosion class
K14/2RU-VA+GW	Double	8–14 mm mm	Stainless steel 304	C5-I	Select
K14RU-VA+GW	Simple	8–14 mm mm	Stainless steel 304	C5-I	Selected
K20/2RU-VA+GW	Double	14–20 mm mm	Stainless steel 304	C5-I	Select
K20RU-VA+GW	Simple	14–20 mm mm	Stainless steel 304	C5-I	Select
K26/2RU-VA+GW	Double	24–28 mm mm	Stainless steel 304	C5-I	Select
K26RU-VA+GW	Simple	24–28 mm mm	Stainless steel 304	C5-I	Select
K32/2RU-VA+GW	Double	26–32 mm mm	Stainless steel 304	C5-I	Select
K32RU-VA+GW	Simple	26–32 mm mm	Stainless steel 304	C5-I	Select
K38RU-VA+GW	Simple	32–38 mm mm	Stainless steel 304	C5-I	Select
K44RU-VA+GW	Simple	38–44 mm mm	Stainless steel 304	C5-I	Select
K52RU-VA+GW	Simple	44–52 mm mm	Stainless steel 304	C5-I	Select
K60RU-VA+GW	Simple	52–60 mm mm	Stainless steel 304	C5-I	Select
K70RU-VA+GW	Simple	60–70 mm mm	Stainless steel 304	C5-I	Select
K14/2RU+GW	Double	8–14 mm mm	Hot-dip galvanized 55 µm	C4	Select
K14RU+GW	Simple	8–14 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20/2RU+GW	Double	14–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20/3RU+GW	Triple	14–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20RU+GW	Simple	14–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K26/2RU+GW	Double	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K26RU+GW	Simple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K32/2RU+GW	Double	26–32 mm mm	Hot-dip galvanized 55 µm	C4	Select
K32/3RU+GW	Triple	26–32 mm mm	Hot-dip galvanized 55 µm	C4	Select
K32RU+GW	Simple	26–32 mm mm	Hot-dip galvanized 55 µm	C4	Select
K38RU+GW	Simple	32–38 mm mm	Hot-dip galvanized 55 µm	C4	Select
K44/2RU+GW	Double	40–44 mm mm	Hot-dip galvanized 55 µm	C4	Select
K44RU+GW	Simple	38–44 mm mm	Hot-dip galvanized 55 µm	C4	Select
K52RU+GW	Simple	44–52 mm mm	Hot-dip galvanized 55 µm	C4	Select
K60RU+GW	Simple	52–60 mm mm	Hot-dip galvanized 55 µm	C4	Select
K70RU+GW	Simple	60–70 mm mm	Hot-dip galvanized 55 µm	C4	Select

Variants

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K14/2RU-VA+GW

Double

8–14 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K14RU-VA+GW

Simple

8–14 mm mm

Stainless steel 304

C5-I

Selected

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20/2RU-VA+GW

Double

14–20 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20RU-VA+GW

Simple

14–20 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K26/2RU-VA+GW

Double

24–28 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K26RU-VA+GW

Simple

24–28 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K32/2RU-VA+GW

Double

26–32 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K32RU-VA+GW

Simple

26–32 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K38RU-VA+GW

Simple

32–38 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K44RU-VA+GW

Simple

38–44 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K52RU-VA+GW

Simple

44–52 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K60RU-VA+GW

Simple

52–60 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K70RU-VA+GW

Simple

60–70 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K14/2RU+GW

Double

8–14 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K14RU+GW

Simple

8–14 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20/2RU+GW

Double

14–20 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20/3RU+GW

Triple

14–20 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20RU+GW

Simple

14–20 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K26/2RU+GW

Double

24–28 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K26RU+GW

Simple

24–28 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K32/2RU+GW

Double

26–32 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K32/3RU+GW

Triple

26–32 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K32RU+GW

Simple

26–32 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K38RU+GW

Simple

32–38 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K44/2RU+GW

Double

40–44 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K44RU+GW

Simple

38–44 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K52RU+GW

Simple

44–52 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K60RU+GW

Simple

52–60 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K70RU+GW

Simple

60–70 mm mm

Hot-dip galvanized 55 µm

Select
