Beam hook, wire mesh tray, 120–600 mm

E No:

MP-number: 757V

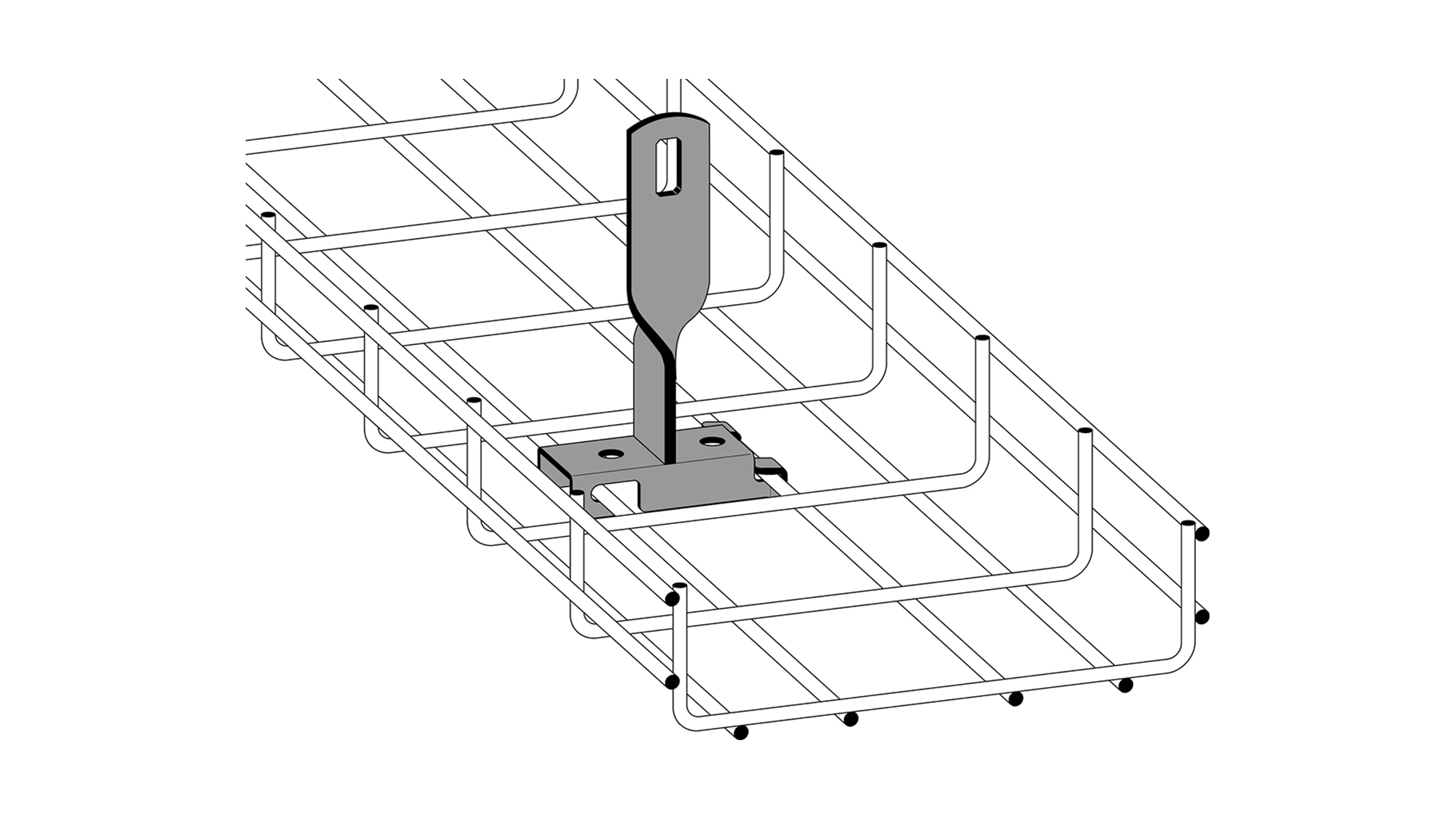

White-painted support yoke for wire mesh trays intended for widths 120–600 mm. The support yoke is made of powder-coated steel and is suitable for environmental class max C2. When mounting wire mesh trays in widths 300–600 mm, the support yoke can be supplemented with support to prevent the edges from bending down MP-758V/MP-767V. Maximum load 80 kg. Ultimate failure load: 1.7 times the maximum load.

All variants All variants

Product details

MP-number 757V
EAN 7394333050553

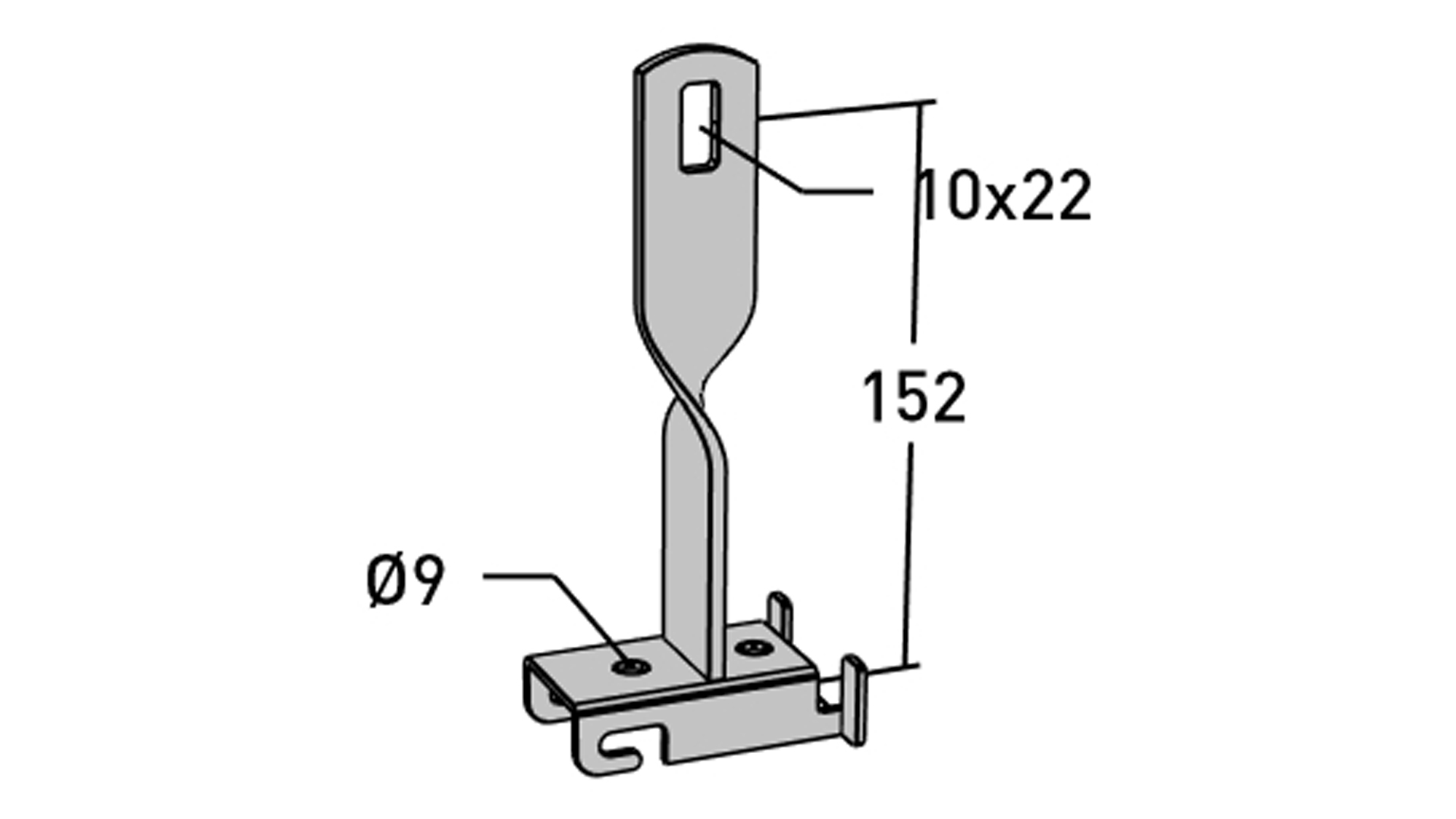

Length 75 mm
Width 55 mm
Height 178 mm
Weight 0.22 kg
Climate impact 0.565 kgCO2e
Surface treatment Lacquered
Color NCS S 0500-N (white)
Corrosion class C2
Mounting Internal
Fits (width) 120–600 mm
Suitable for Wire ladders

Documents

Environmental data varnished_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Surface treatment	Color	Corrosion class	Fits (width)
757E	Electrogalvanized 10 µm		C1	120–600 mm	Select
757V	Lacquered	NCS S 0500-N (white)	C2	120–600 mm	Selected
757R	Stainless steel 316L		C5-M	120–600 mm	Select
757Z	Hot-dip galvanized 55 µm		C4	120–600 mm	Select
