Beam clamp
C4
E No:
|
MP-number: 253Z
Designed for fastening to steel beams. For flange thickness 5-18 mm.Suitable for anchor rails with 21 and 41 mm height. The anchor rail can be turned in any direction for more versatile mounting. Max load 500 kg.
All variants
Product details
- MP-number 253Z
- EAN 7394333033716
- Length 100 mm
- Width 80 mm
- Height 75 mm
- Weight 0.42 kg
- Climate impact 1.217 kgCO2e
- Surface treatment Hot-dip galvanized 55 µm
- Corrosion class C4
- Suitable for Cable ladders, Cable trays, Wire ladders
Documents
Environmental data galvanized Z_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Length
Width
Height
Surface treatment
Corrosion class
Suitable for
253Z
100 mm
80 mm
75 mm
Hot-dip galvanized 55 µm
C4
Cable ladders, Cable trays, Wire ladders
Relaterade produkter
C2

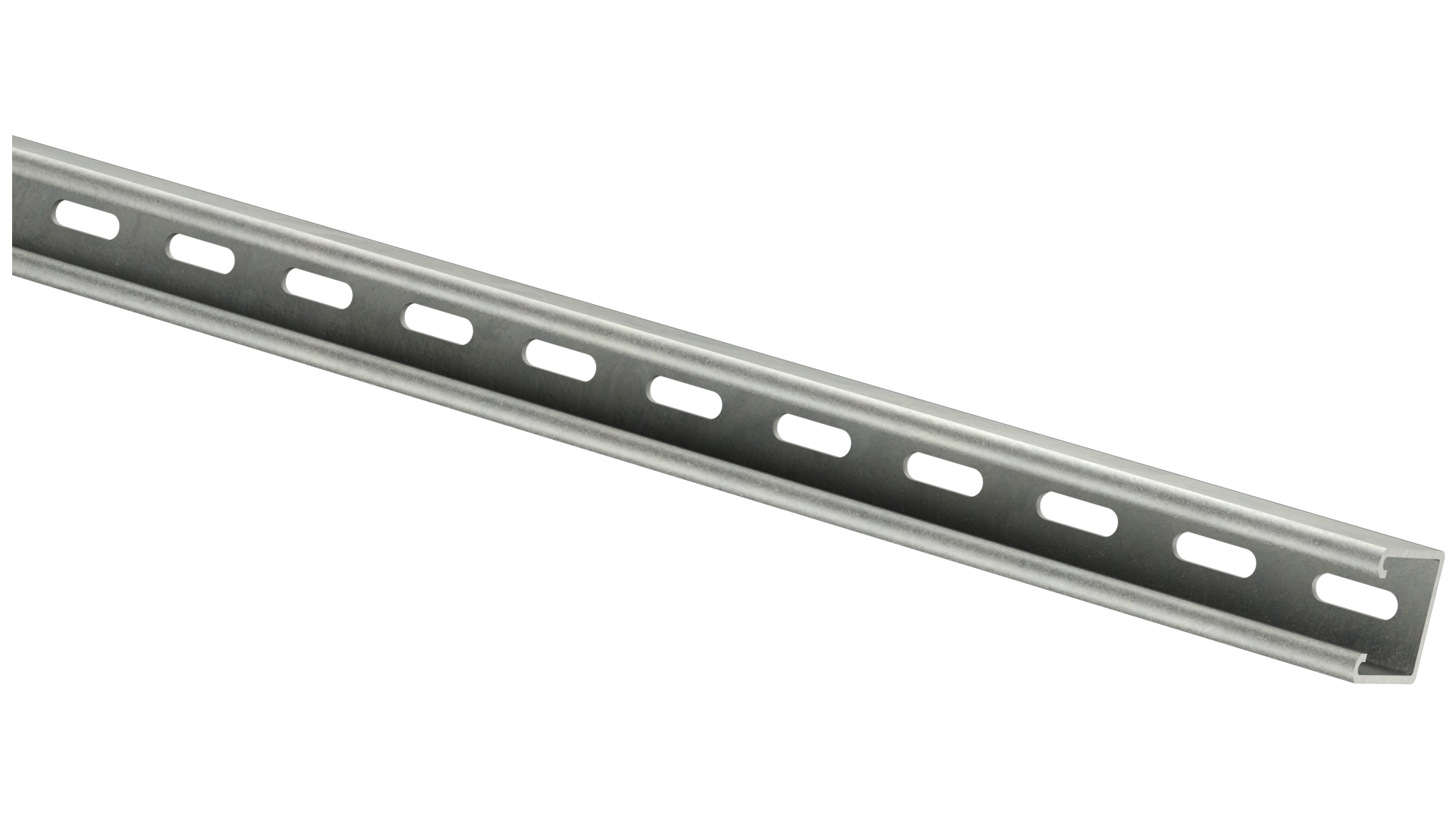

Anchor rail MP-V, 21x41 mm, 3000 mm
