Appliance box, horizontal, low profile, max. height 65 mm for plastic floor boxes
E No:
|
MP-number: UGE3-VRK4

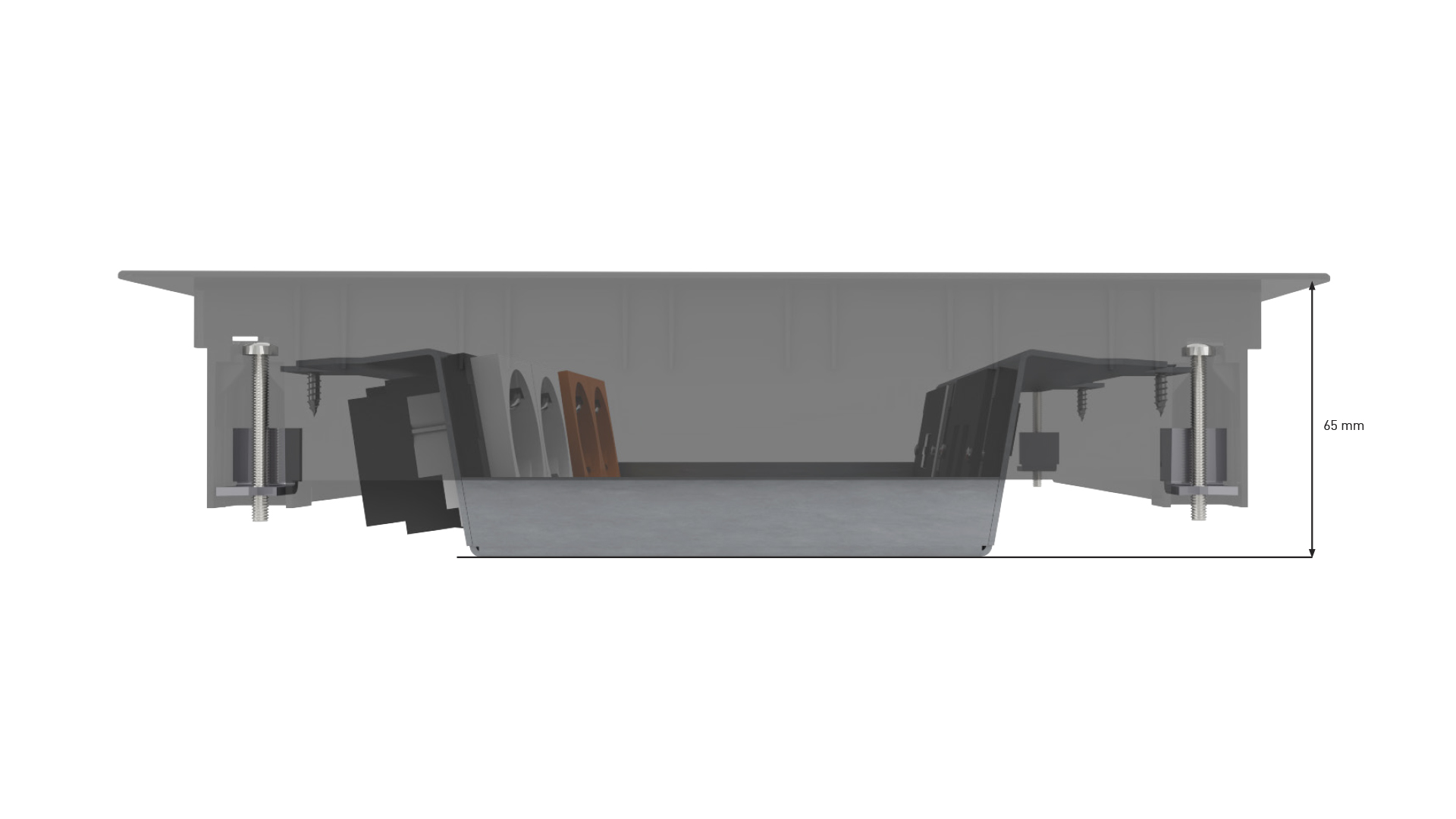

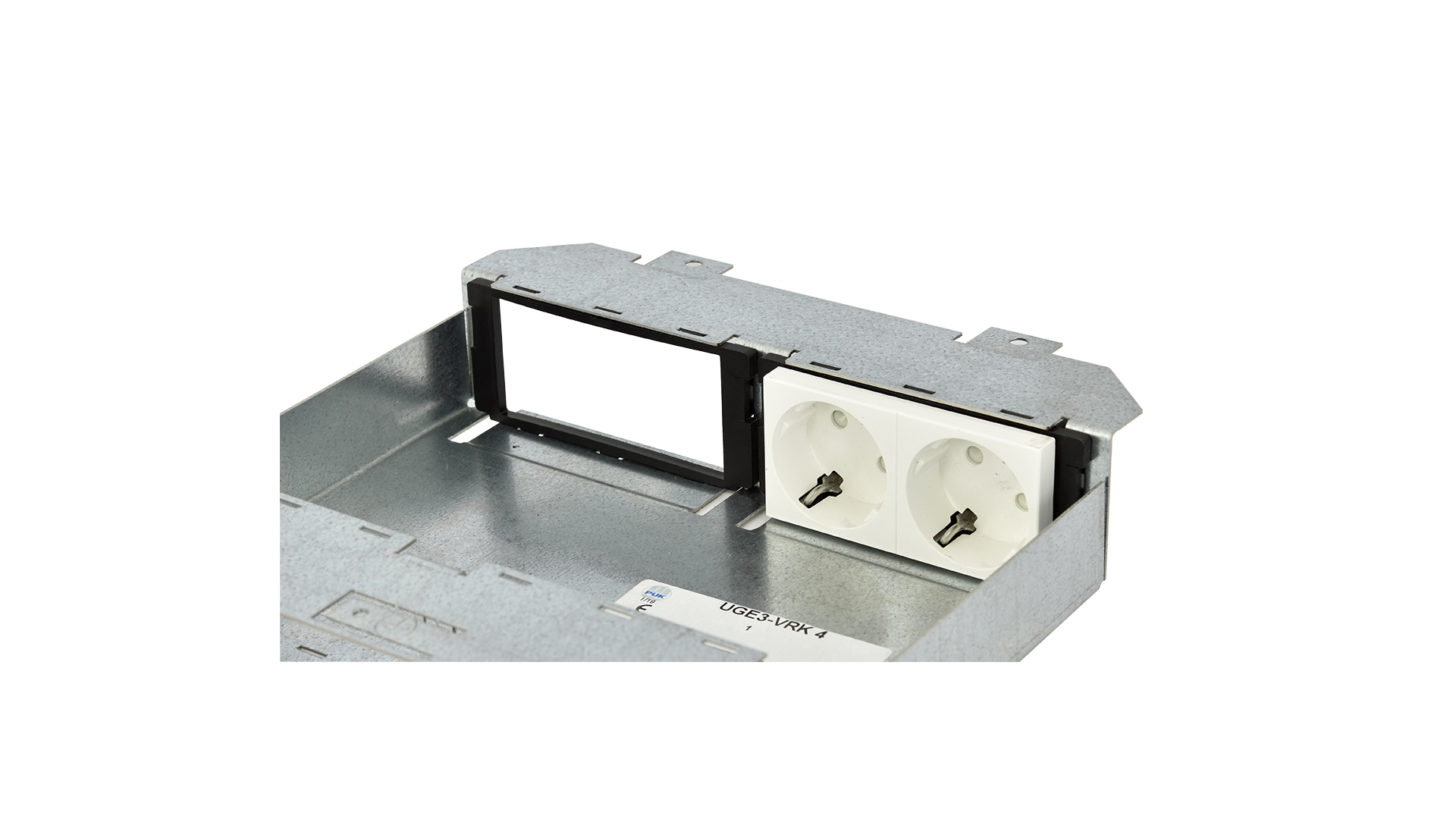

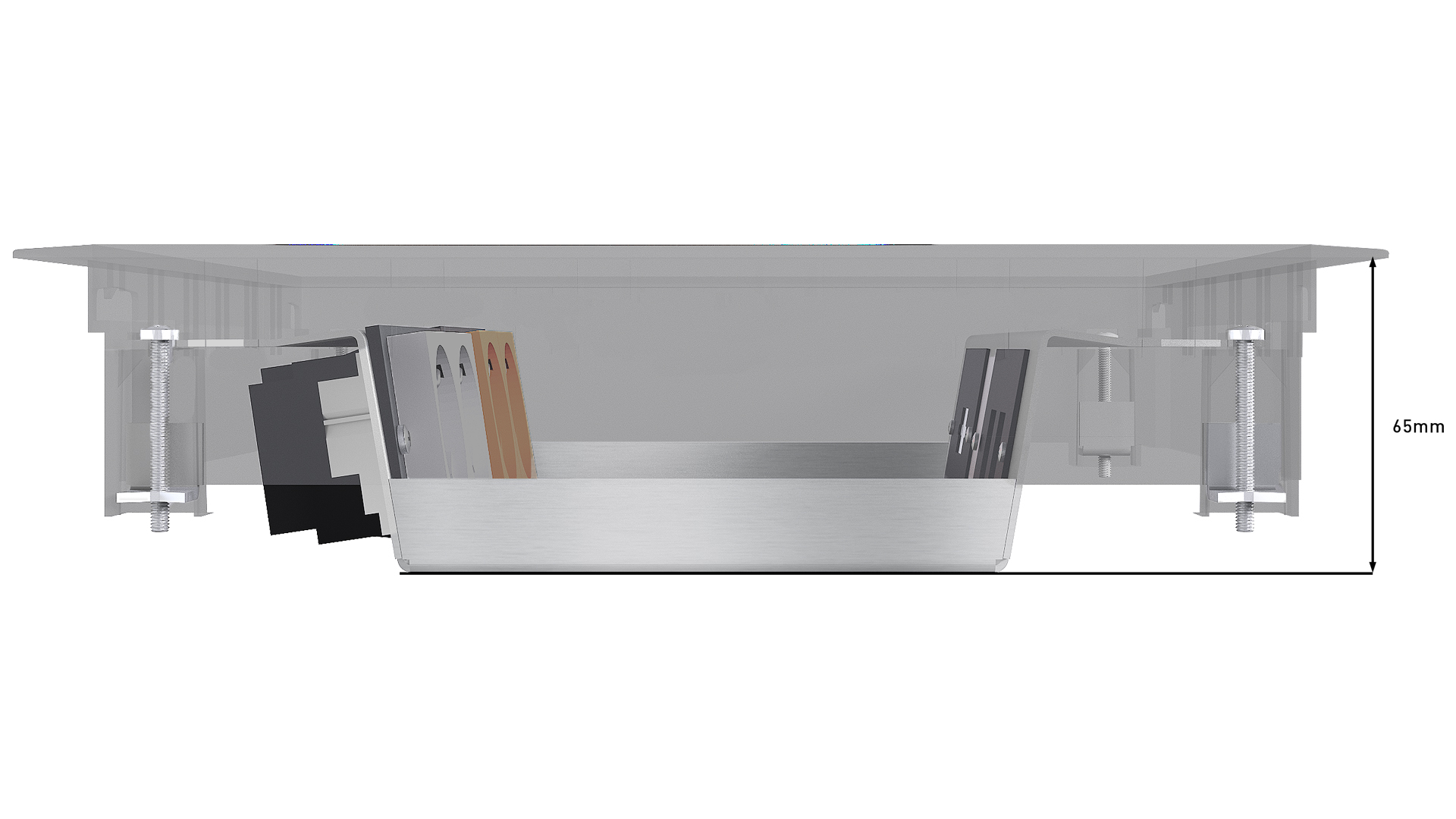

Mounting box low profile - for plastic floor box UEK3-V-G. The low inset depth provides an installation height of a maximum of 65 mm. When mounting power sockets, UST45-W 2 be supplemented with a mounting frame for mosaic UGEE-2-UST45.
All variants
Product details
- MP-number UGE3-VRK4
- EAN 4040918258915
- Length 226 mm
- Width 252 mm
- Height 52 mm
- Weight 0.76 kg
- Surface treatment Pre-galvanized 20 µm
- Suitable for Floor boxes
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Length
Width
Height
Surface treatment
Suitable for
UGE3-VRK4
226 mm
252 mm
52 mm
Pre-galvanized 20 µm
Floor boxes
