Wire ladder high, 300 mm

C4

E No:

|

MP-number: 724HZ4

Wire mesh tray for flexible installations. The diameter of the wires is 5 mm. A taller variant with 110 mm high sides, for when a little more space is required. The accessories are the same as for the lower model. The wire mesh tray is made of a zinc-magnesium alloy (25 µm) and is suitable for environmental class max C4. The advantage of this material is that it self-heals, for example when cut, and is a more durable alternative to traditional hot-dip galvanising. Several of the accessories are shared with the rest of the MP range. Can be ordered in any painted colour.
All variants

Product details

  • MP-number 724HZ4
  • EAN 7394333051666
  • Length 2500 mm
  • Width 300 mm
  • Height 109 mm
  • Weight 6.2 kg
  • Climate impact 16.74 kgCO2e
  • Surface treatment Z4
  • Corrosion class C4
  • Wire diameter 5 mm

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

722HE

5 mm

120 mm

Electrogalvanized 10 µm

C1

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

723HE

5 mm

200 mm

Electrogalvanized 10 µm

C1

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

724HE

5 mm

300 mm

Electrogalvanized 10 µm

C1

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

725HE

6 mm

400 mm

Electrogalvanized 10 µm

C1

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

726HE

6 mm

500 mm

Electrogalvanized 10 µm

C1

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

727HE

6 mm

600 mm

Electrogalvanized 10 µm

C1

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

722HR

5 mm

120 mm

Stainless steel 316L

C5-M

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

723HR

5 mm

200 mm

Stainless steel 316L

C5-M

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

724HR

5 mm

300 mm

Stainless steel 316L

C5-M

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

725HR

6 mm

400 mm

Stainless steel 316L

C5-M

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

726HR

6 mm

500 mm

Stainless steel 316L

C5-M

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

727HR

6 mm

600 mm

Stainless steel 316L

C5-M

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

722HZ4

5 mm

120 mm

Z4

C4

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

723HZ4

5 mm

200 mm

Z4

C4

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

724HZ4

5 mm

300 mm

Z4

C4

Selected

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

725HZ4

6 mm

400 mm

Z4

C4

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

726HZ4

6 mm

500 mm

Z4

C4

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion class

727HZ4

6 mm

600 mm

Z4

C4

Select

Relaterade produkter

C5-M

Potential connection screw, 10 pcs, 7, 5xM8x16 mm

E No:

MP-number: 939R

C4

Beam hook, wire mesh tray, 120–600 mm

E No:

MP-number: 757Z

C4

Angle bracket for wire mesh tray

E No:

MP-number: 737Z

C4

Fixing plate, perforated, 180x120 mm

E No:

MP-number: 739Z

C5-M

Corner joint for wire ladder

E No:

MP-number: 732R

C5-M

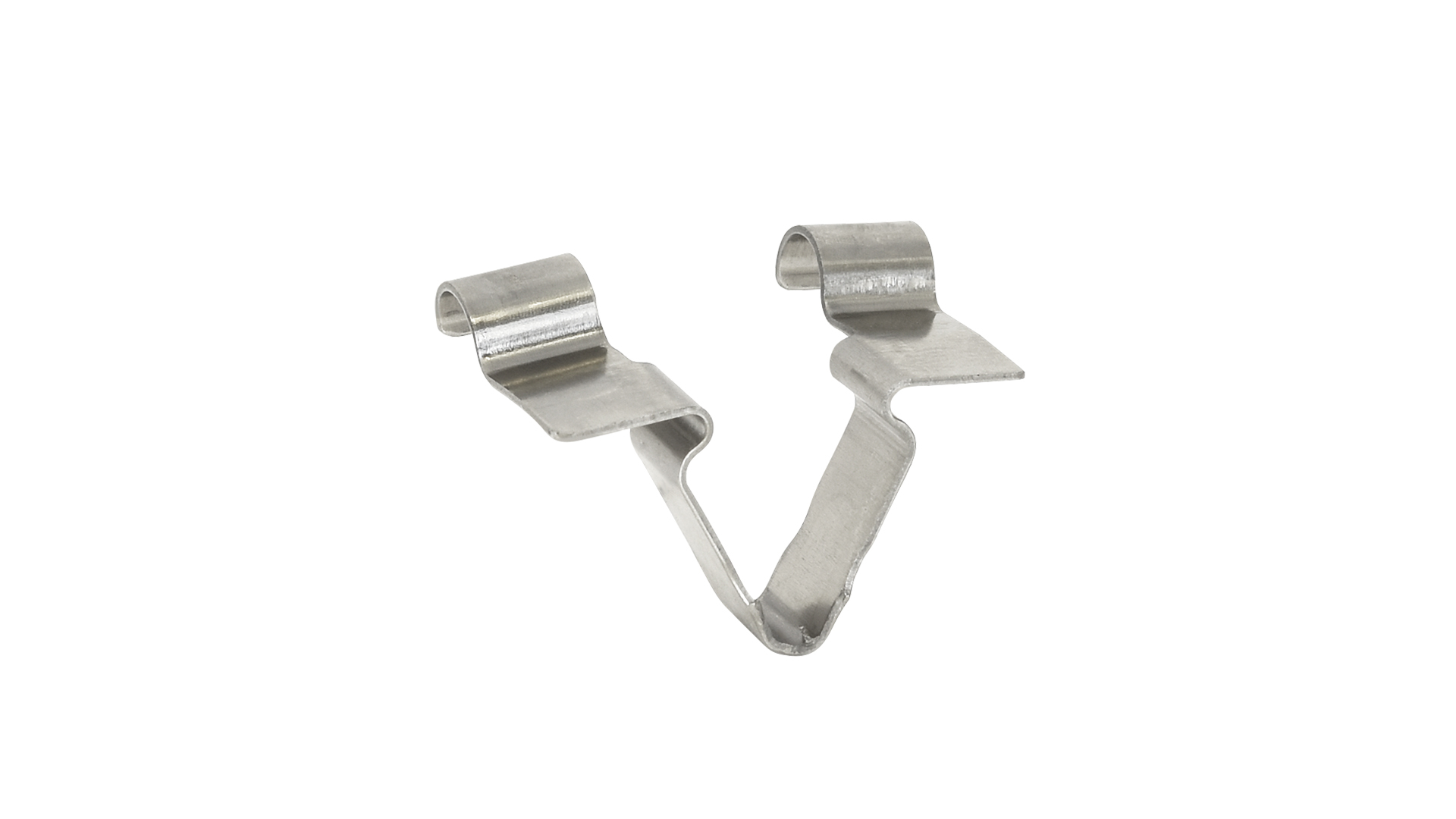

Bracket clip, 10 pcs

E No:

MP-number: 733R

C4

Cover, 2 m, 300 mm

E No:

MP-number: 450Z4

C5-M

Bolt set M8, 50 pcs, M8x16 mm

E No:

MP-number: 295R

N/A

Labelling plate, Coax, 10 pcs

E No:

MP-number: 780CO

N/A

Labelling plate, Opto, 10 pcs

E No:

MP-number: 780OP

N/A

Labelling plate, Pair, 10 pcs

E No:

MP-number: 780PA

Labelling plate, Pow, 10 pcs

E No:

MP-number: 780PO

N/A

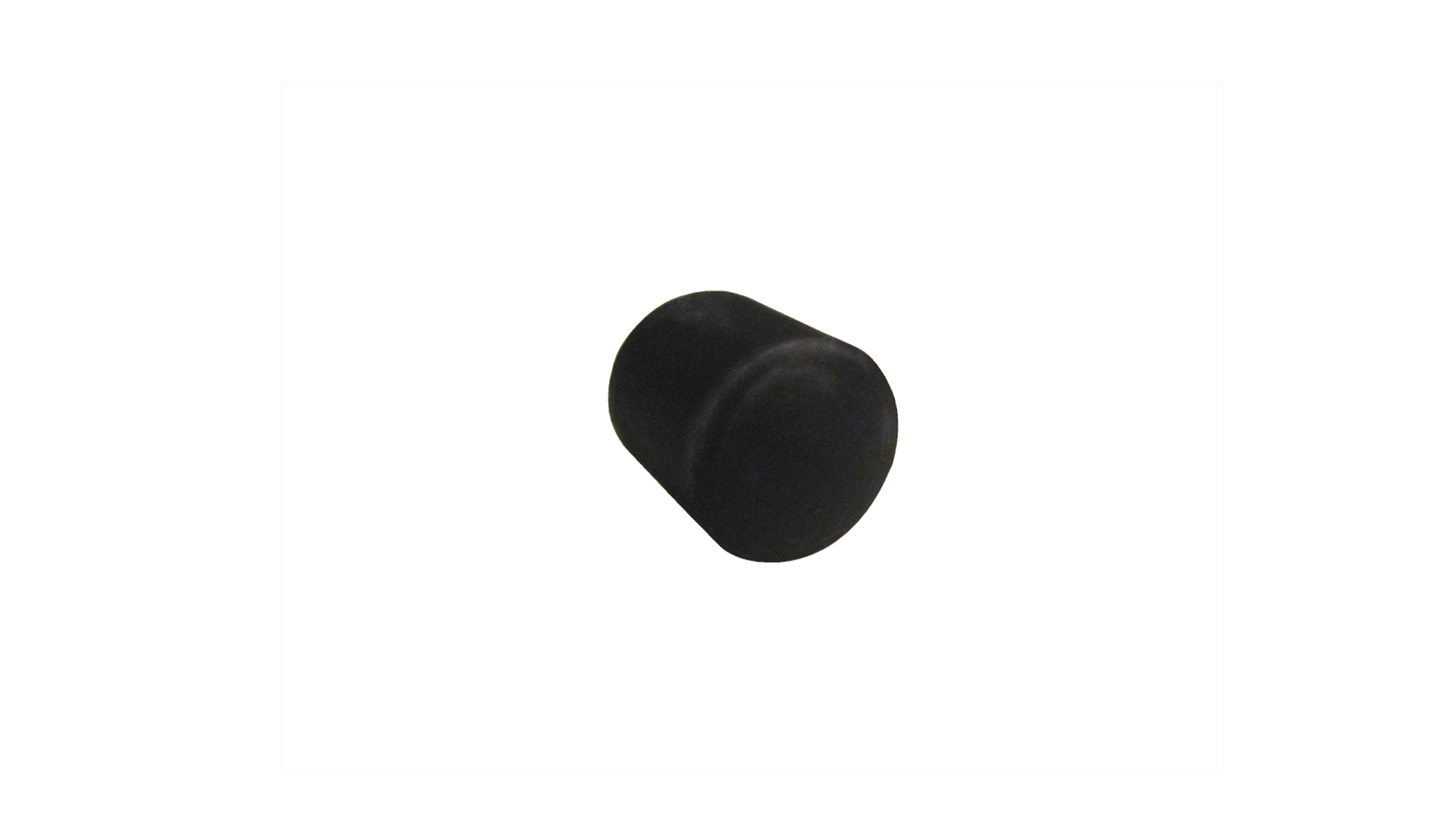

Plastic knob, 100 pcs, 5 mm

E No:

MP-number: 763P

C4

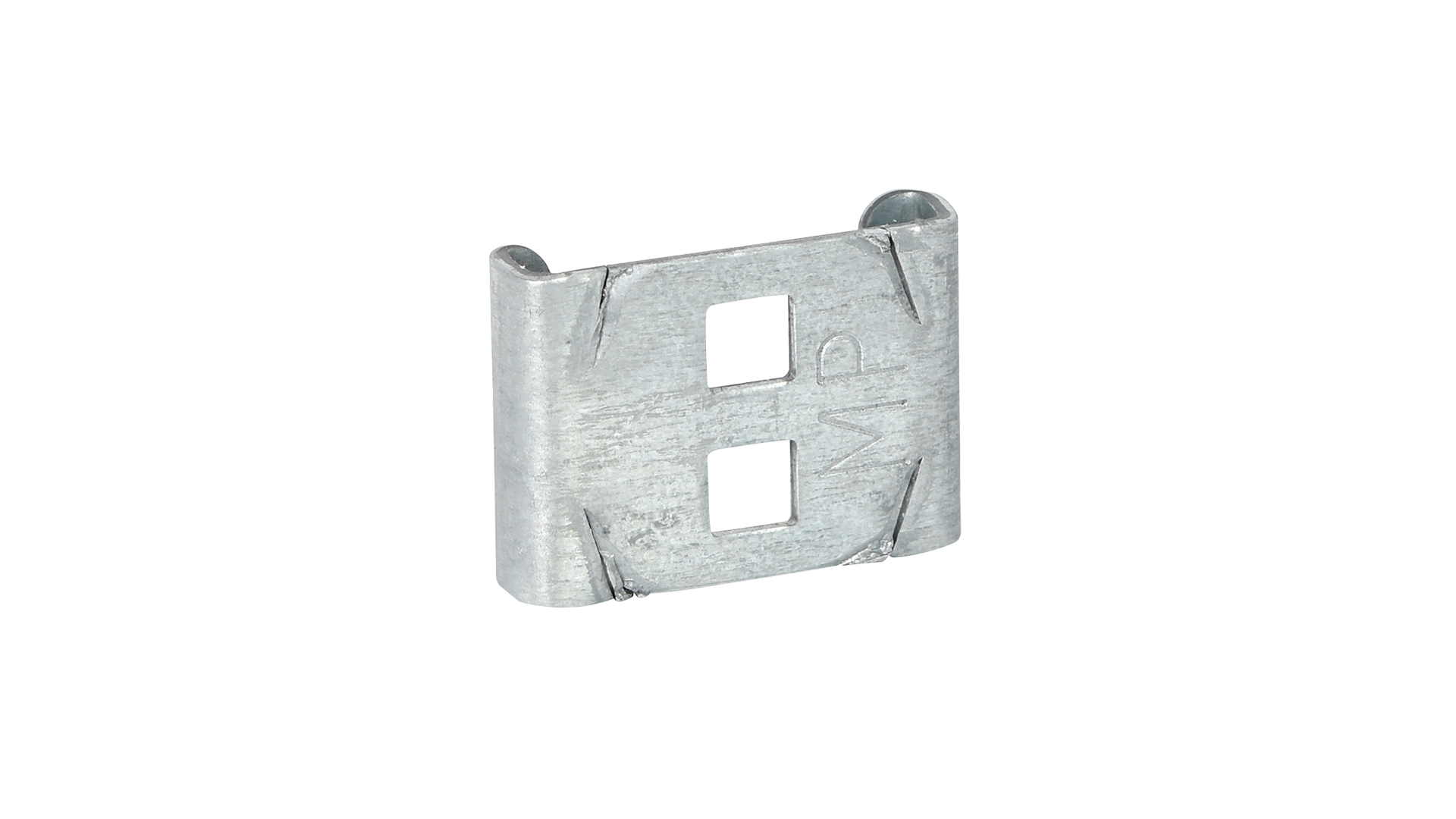

Splice for wire ladders
