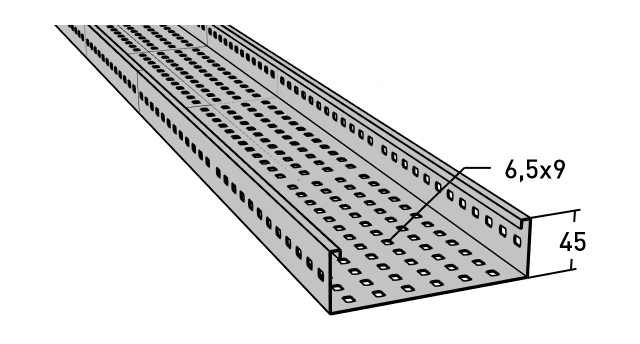

Cable tray – perforated, 400 mm

E No:

MP-number: 3631S

Perforated tray with about 13% perforation. Painted trays are supplied with paint-free ends (internally). Other lengths and colours quoted on request. The Sendzimir process is used to prevent corrosion and may result in slight variations in colour/appearance. Bracket distance is determined by the length of the rail. 2 m rail = C-C 2 m and 3 m rail C-C = 3 m. 6 m rail needs a suspension in the middle. These values apply at normal load.

All variants All variants

Product details

MP-number 3631S
EAN 7394333119694
Length 2000 mm
Width 400 mm
Height 45 mm
Weight 8.84 kg
Climate impact 23.691 kgCO2e
Surface treatment Pre-galvanized 20 µm
Corrosion class C2
Configuration Perforated gutter

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Length	Width	Corrosion class	Surface treatment	Color
3931S	3000 mm	50 mm	C2	Pre-galvanized 20 µm		Select
3931V	3000 mm	50 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3131S	3000 mm	75 mm	C2	Pre-galvanized 20 µm		Select
3131V	3000 mm	75 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3231S	3000 mm	100 mm	C2	Pre-galvanized 20 µm		Select
3231V	3000 mm	100 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3331S	3000 mm	150 mm	C2	Pre-galvanized 20 µm		Select
3331V	3000 mm	150 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3431S	3000 mm	200 mm	C2	Pre-galvanized 20 µm		Select
3431V	3000 mm	200 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3531S	2000 mm	300 mm	C2	Pre-galvanized 20 µm		Select
3531V	2000 mm	300 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3631S	2000 mm	400 mm	C2	Pre-galvanized 20 µm		Selected
3631V	2000 mm	400 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3731S	2000 mm	500 mm	C2	Pre-galvanized 20 µm		Select
3731V	2000 mm	500 mm	C2	Lacquered	NCS S 0500-N (white)	Select
3831S	2000 mm	600 mm	C2	Pre-galvanized 20 µm		Select
3831V	2000 mm	600 mm	C2	Lacquered	NCS S 0500-N (white)	Select

Variants

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3931S

3000 mm

50 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3931V

3000 mm

50 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3131S

3000 mm

75 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3131V

3000 mm

75 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3231S

3000 mm

100 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3231V

3000 mm

100 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3331S

3000 mm

150 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3331V

3000 mm

150 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3431S

3000 mm

200 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3431V

3000 mm

200 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3531S

2000 mm

300 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3531V

2000 mm

300 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3631S

2000 mm

400 mm

Pre-galvanized 20 µm

Selected

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3631V

2000 mm

400 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3731S

2000 mm

500 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3731V

2000 mm

500 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3831S

2000 mm

600 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

3831V

2000 mm

600 mm

Lacquered

NCS S 0500-N (white)

Select

Relaterade produkter

Choose the right material

Here you will find information about our various surface treatments and alloys.

Surface treatment and alloying

Quantity surveying

We offer assistance with quantity surveying – from drawing to project.

Quantity surveying

Customer cases and projects

Need inspiration? Check out our customer cases.

Client case

Cable tray – perforated, 400 mm

Relaterade produkter

Wall bracket, light, 400 mm

Supporting tray joint – centre or side suspension, 400 mm

Beam hook wide tray/rail, 400 mm

Fixing plate perforated, 180x175 mm

Fixing plate perforated, 180x130 mm

Internal support bracket, 300-600 mm

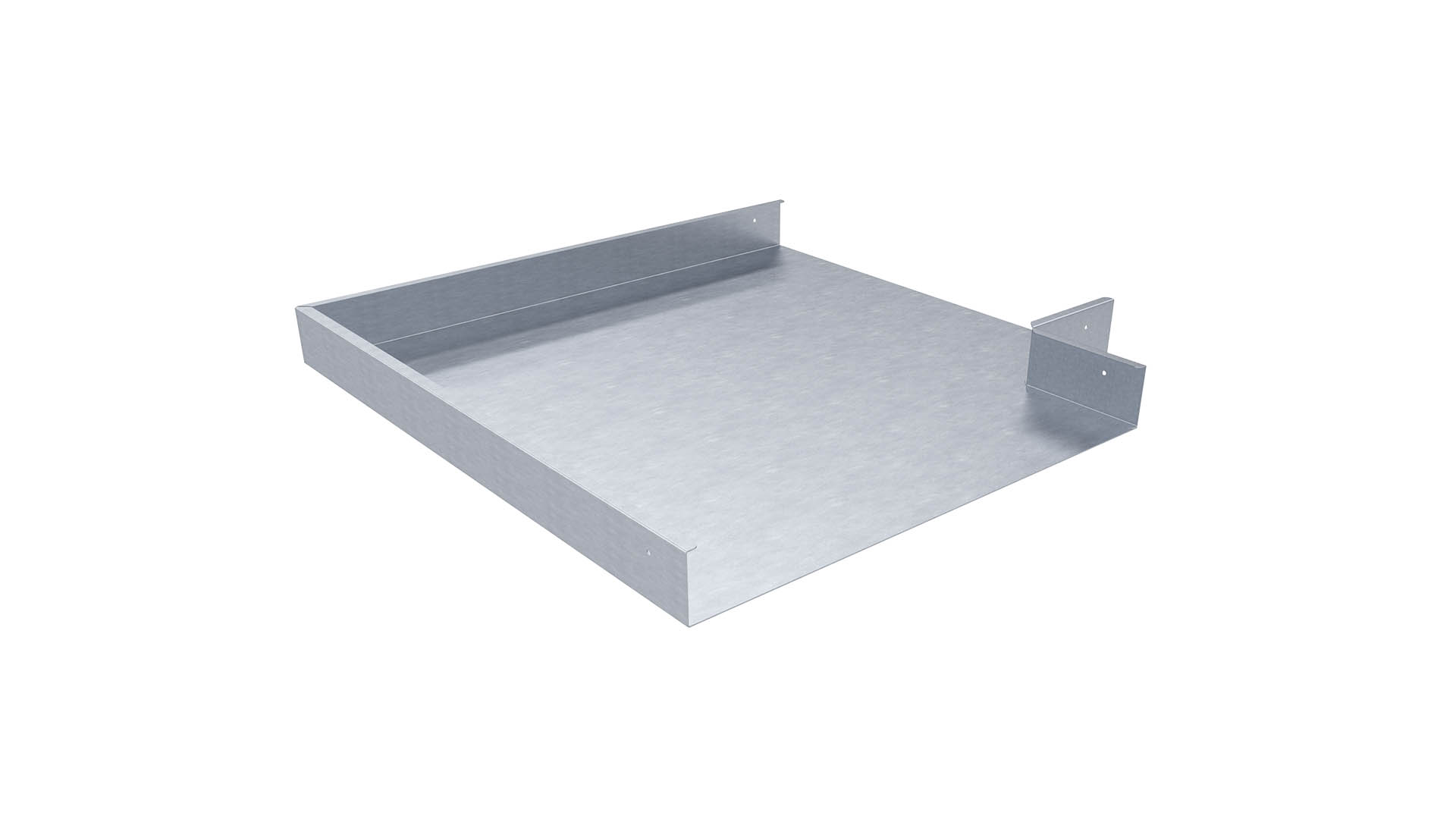

L-branch tray, 400 mm

Cover, 2 m, 400 mm

Seam support, 400 mm

Level joint, 400 mm

Side connector for tray

Splice partition plate, 25 mm, 1750 mm

Adjustable bend, 400 mm

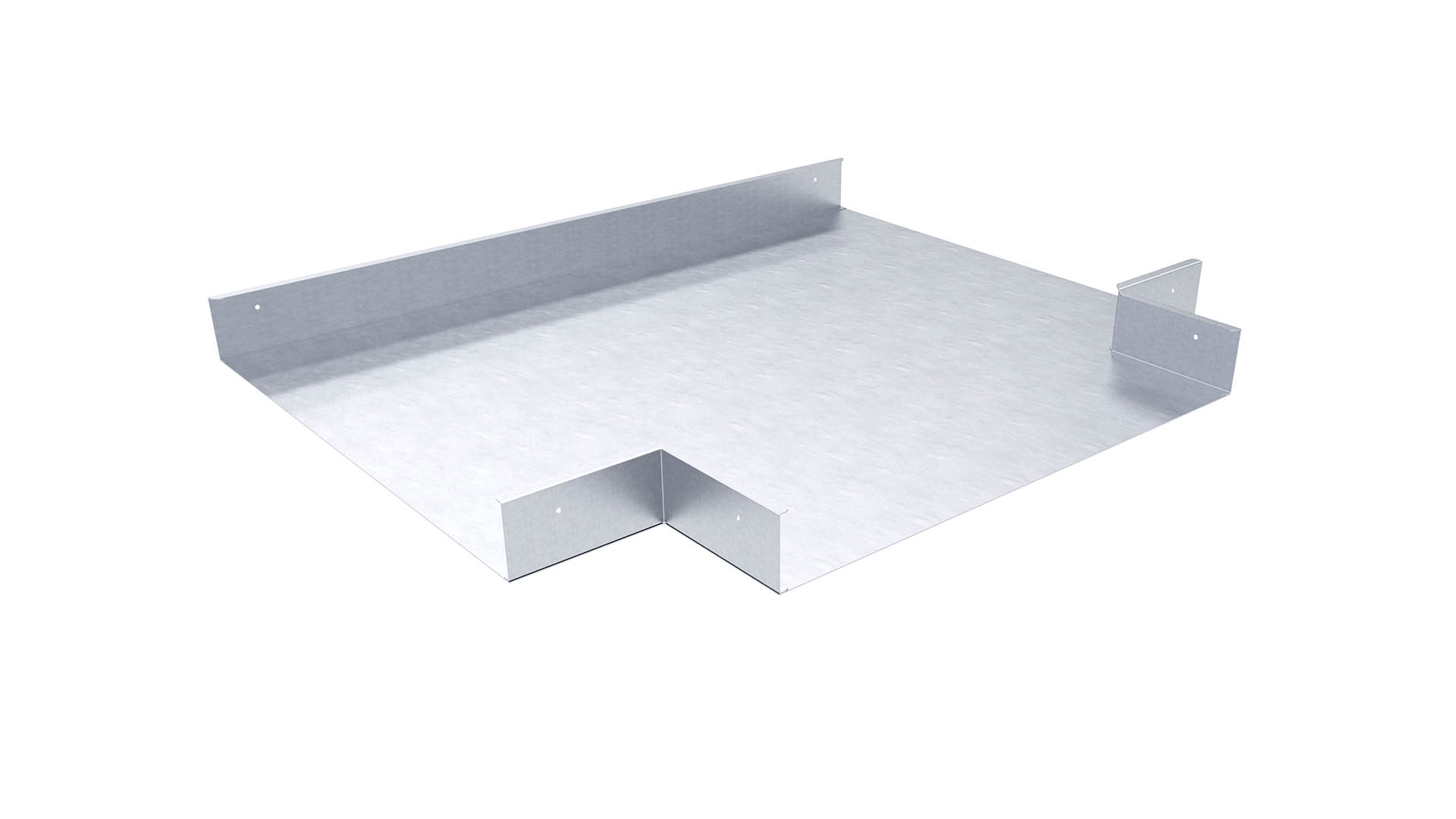

T-branch tray, 400 mm

Universal joint

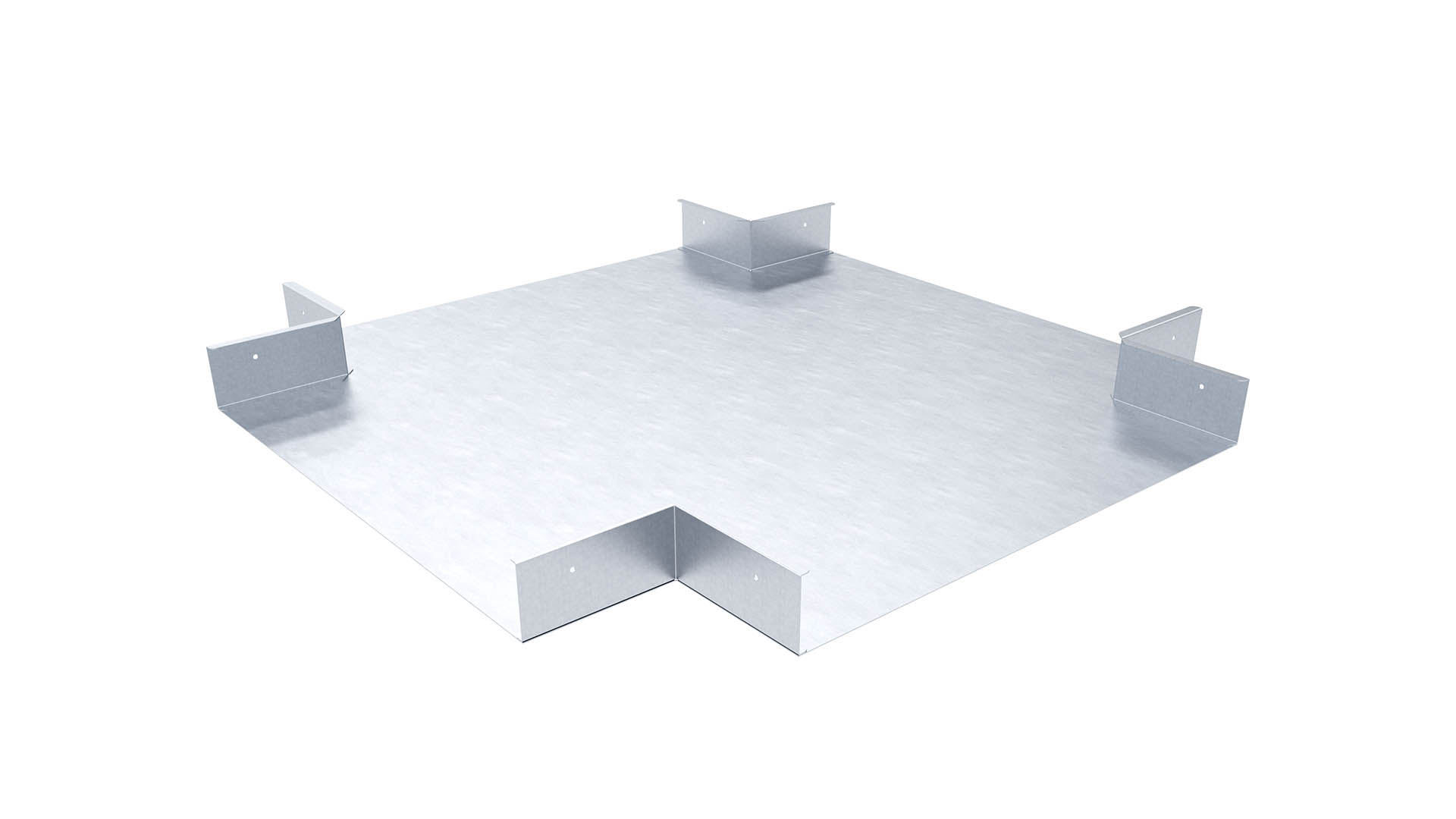

X-branch tray, 400 mm
