Floor and ceiling pendulum MP-DV, 3000 mm

C2

E No:

|

MP-number: 975V

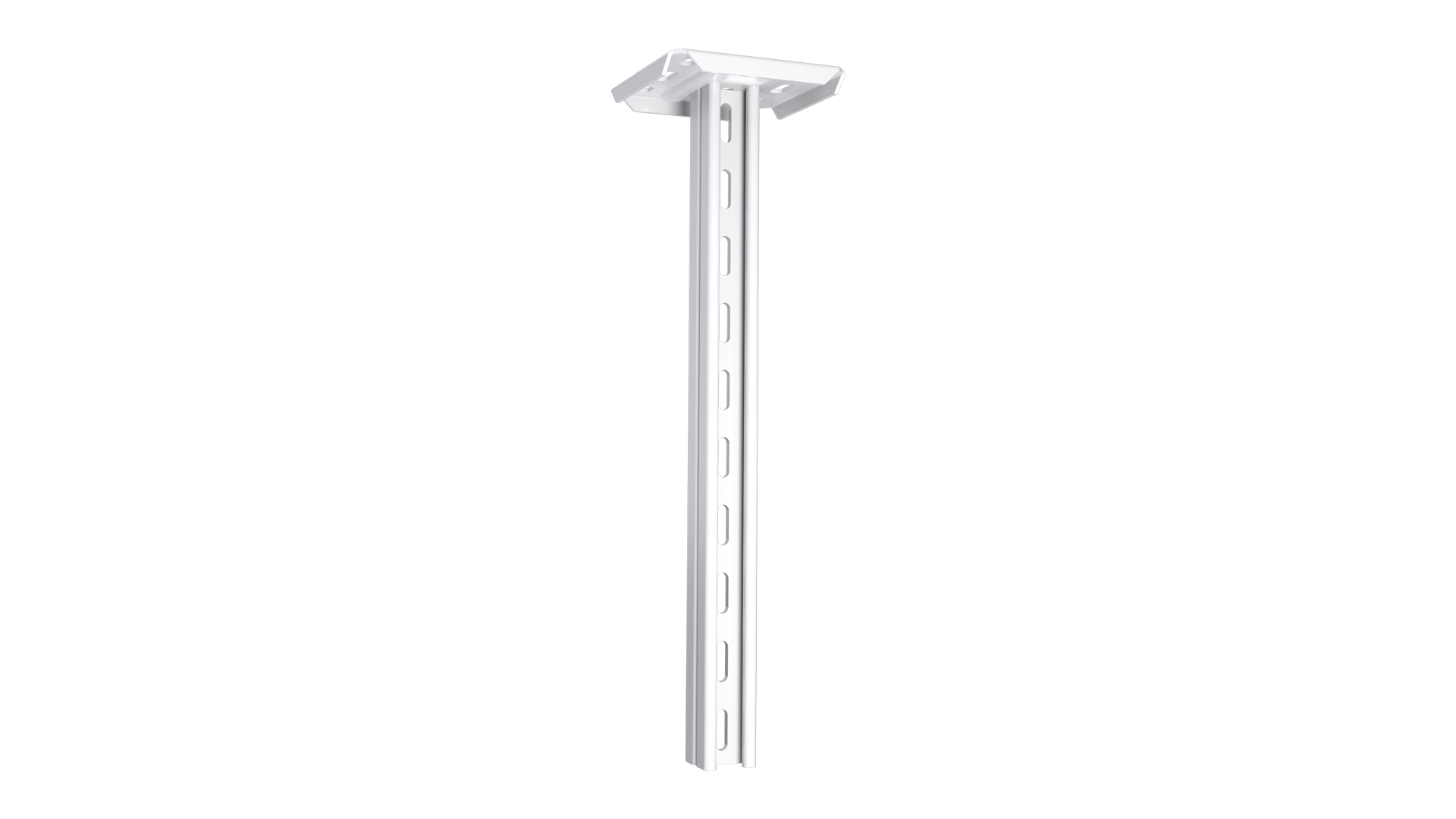

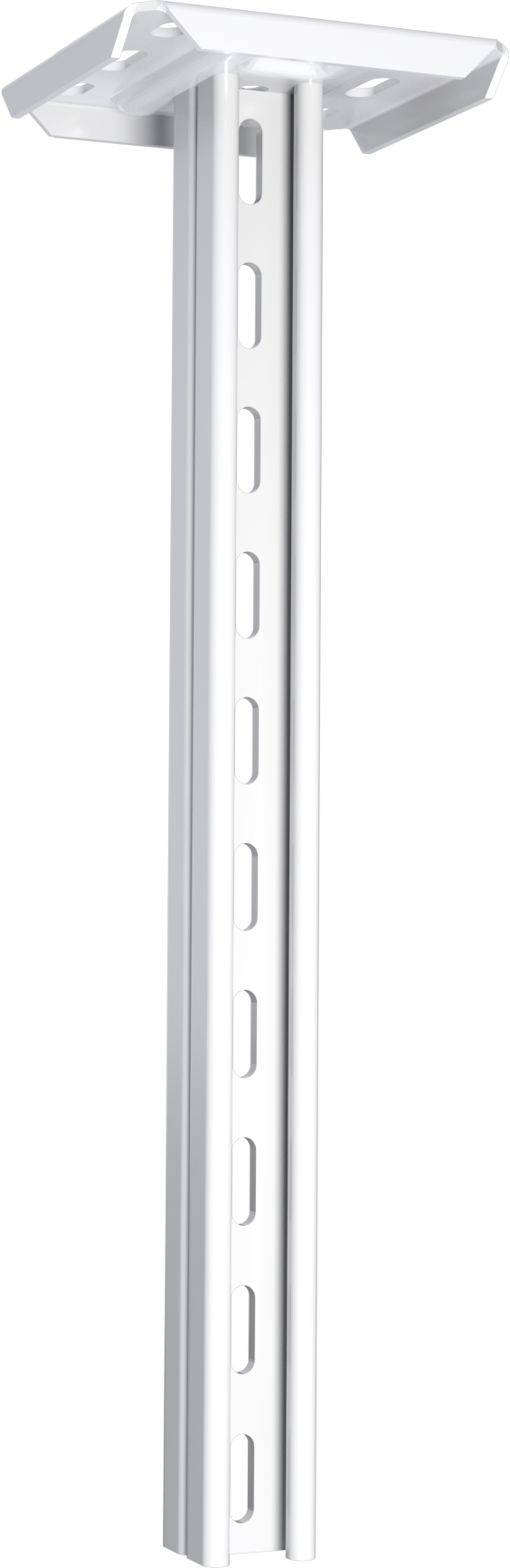

Double-sided, white-painted ceiling/floor pendant – MP-DV 2x21x41 mm. Is used to hang from the ceiling but can also be used as a support against a floor with both side and middle mounting. The ceiling pendant is made of powder-coated steel and is suitable for environmental class max C2. Add nut washer or T-bolt for easy adjustment of cantilever arm.
All variants

Product details

  • MP-number 975V
  • EAN 7394333038797
  • Length 120 mm
  • Width 140 mm
  • Height 3006 mm
  • Weight 12.1 kg
  • Climate impact 31.097 kgCO2e
  • Surface treatment Lacquered
  • Color NCS S 0500-N (white)
  • Corrosion class C2
  • Suitable for Cable ladders, Cable trays, Wire ladders
  • Model MP-DV

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Color

Surface treatment

Corrosion class

Length

970V

NCS S 0500-N (white)

Lacquered

C2

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

971V

NCS S 0500-N (white)

Lacquered

C2

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

972V

NCS S 0500-N (white)

Lacquered

C2

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

973V

NCS S 0500-N (white)

Lacquered

C2

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

974V

NCS S 0500-N (white)

Lacquered

C2

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

975V

NCS S 0500-N (white)

Lacquered

C2

120 mm

Selected

MP-number

E No

Color

Surface treatment

Corrosion class

Length

970R

Stainless steel 316L

C5-M

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

971R

Stainless steel 316L

C5-M

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

972R

Stainless steel 316L

C5-M

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

973R

Stainless steel 316L

C5-M

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

974R

Stainless steel 316L

C5-M

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

975R

Stainless steel 316L

C5-M

120 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

970Z

Hot-dip galvanized 55 µm

C4

506 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

971Z

Hot-dip galvanized 55 µm

C4

756 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

972Z

Hot-dip galvanized 55 µm

C4

1006 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

973Z

Hot-dip galvanized 55 µm

C4

1506 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

974Z

Hot-dip galvanized 55 µm

C4

2006 mm

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Length

975Z

Hot-dip galvanized 55 µm

C4

3006 mm

Select
